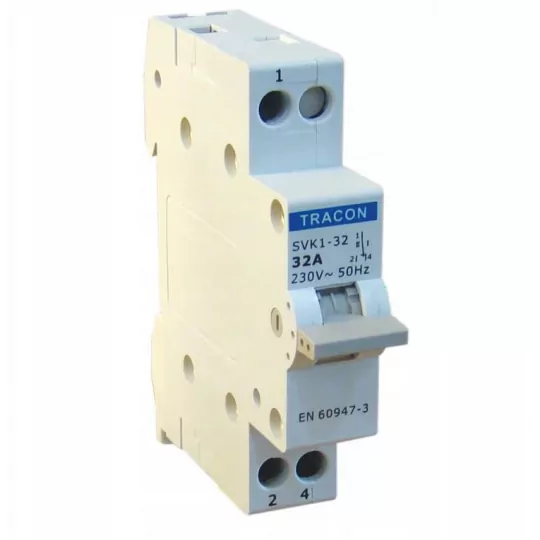

Network-aggregate selector switch 1P 32A SVK1-32 TRACON

Product description

Modular switch network aggregate 1P 32A SVK1-32 is a product designed and used for control systems. The manufacturer of this product is TRACON company. The selection switch is designed to protect the entire electrical system in your home. The fuse, after detecting an overvoltage on one of the installation wires, disconnects it. In the event of a power shortage, these fuses have the ability to plug in the generator. Drawing current from the device, they supply it to the wires. This does not cause sudden changes in power supply. It is useful wherever there are power outages.

Installation switch is used in control systems. It allows cooperation and control of other building automation products or directly of consumers. Switches can be used to switch control modes (manual, off and automatic mode) or switch measurement circuits (e.g. voltage, frequency measurement). The product is very easy to install. Mounting is done on a mounting rail with which the entire electrical installation is protected from damage.

Technical data:

• rated current [A]: 32
• Rated operating voltage Ue: 240/400 V AC
• Operating current (AC-21): Ie = Ith
• Rated insulation voltage: 690 V~
• Rated shock voltage: 6 kV
• Electrical strength (kj): 10000
• Mechanical strength (kj): 20000
• Resistance to flashover (with stray): 10 kA (max 63 A gG/gL)
• Mounting: on a 35×7.5 mm rail
• Conductors: 1-16 mm2 (flexible), 1-16 mm2 (solid)
• Ambient temp: -25... +55 °C
• Code: SVK1-32
• EAN: 5997374172394
• Manufacturer: Tracon Electric
