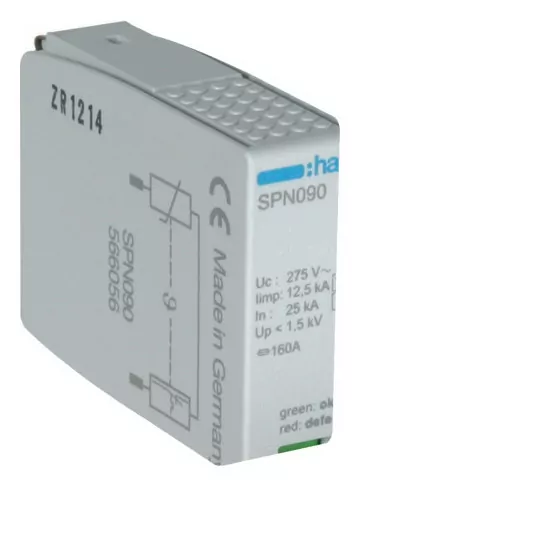

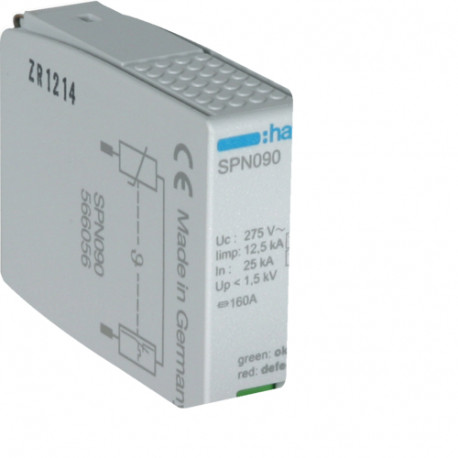

B+C 12.5kA surge arrester cartridge SPN090 Hage

Product description

Power limiters are otherwise known as lightning arresters. This is a product that ensures the safe mode of operation of the entire electrical system. Such an arrester has the task of protecting electrical apparatus from transient overvoltages and limiting the duration and value of the follow-up current. Therefore, such arresters are very necessary in the entire circuit of the electrical system. This product is interchangeable. Thus, you do not need to replace the entire arrester only the insert which is currently damaged by any short circuit on the electrical line.

Technical data:

• Symbol: SPN090
• EAN code: 3250615660565
• Manufacturer: HAGER POLO Sp. z o. o.
• Unit: 1 piece
• Gross weight: 103 g
• ETIM class: surge arrester Type 1+2 (class B+C) (EC001457)
• Highest permanent operating voltage AC: 275 V
• Rated AC voltage: 400 V
• Maximum photovoltaic installation voltage:0 V
• Protection level: 1.5 kV
• Mounting method: DIN TH-35 mm mounting rail
• Blowout: no
• Degree of protection (IP): IP20
