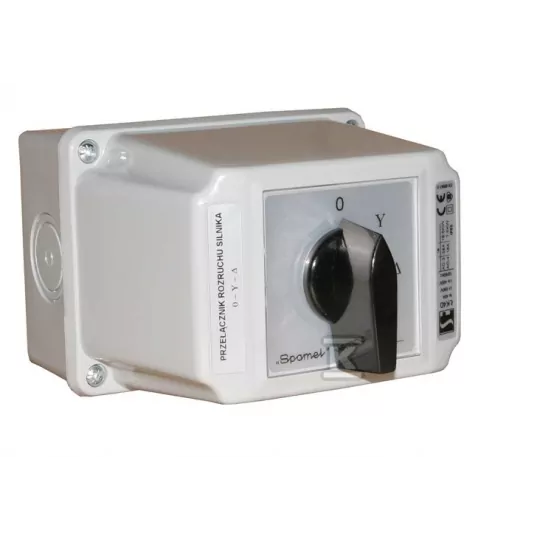

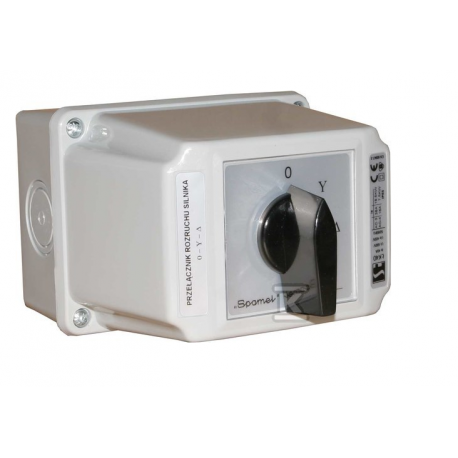

Cam switch in housing ŁK63A IP65 Spamel

Product description

The bias switch will ensure the proper operation of the electrical system and allow you to turn the device on and off. The switches are designed to switch the standard 400-volt mains voltage. The switch can be easily installed to any appliance or structure being created, if the current parameters are met. Just as easy is the operation of the switch-just turn the knob. Choosing this product from SPAMEL will ensure comfortable and safe operation.

Technical data:

• Rated insulation voltage Ui: 690 V
• Rated withstandsurge voltage Uimp: 6 kV
• Ratedcontinuous current Iu=Ith: 63 A
• Ratedswitching power Pe in cat. AC-3: 20 kW (400 V)20 kW (500 V) 10 kW (690 V)
• Rated switching power Pe in cat. AC-4: 12 kW (400 V) 8 kW (690 V)
• Rated switchingcurrent Ie in cat. AC-3: 38 A (400 V) 30 A (500 V)11 A (690 V)
• Rated switching currentIe in cat. AC-4: 23 A (400 V) 8.5 A (690 V)
• Rated short-circuit withstand current Icw(1s): 1.2 kA
• Rated short-circuit switchable current Icm: 2.2 kA
• Mechanical life: 3.0 million (switching cycles)
• Ambient temperature: -40 ... +70°C (operating)-40 ... +70°C (storage)
• Cross-section of connection wires: 4...10 mm²
• Degree of protection: PN-EN 60529 relative to the panel: IP41IP65
• Vibration resistance (according to IEC 60068-2-6): 2...13, 2...100 Hz (frequency)± 1 mm (displacement amplitude)± 0.7 g (acceleration amplitude)
• Shock resistance (according to IEC 60068-2-27): 15 g (peak acceleration)11 ms (pulse duration)
• Resistance to humid cyclic heat (IEC 60068-2-30): 55°C (ambient temperature)95% (relative humidity)
• Resistanceto salt spray cyclic (IEC 60068-2-52): test acuity 1
