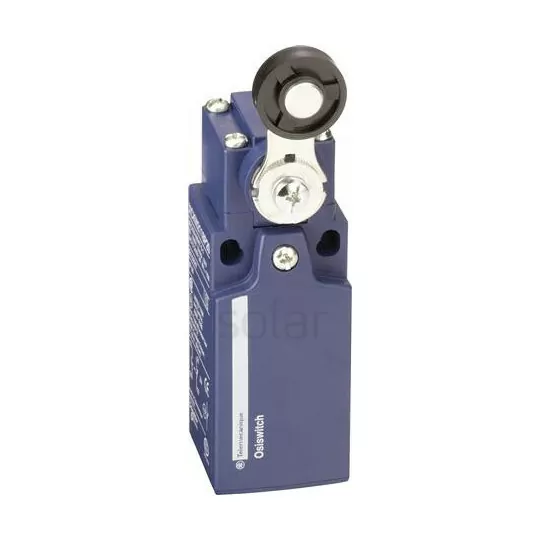

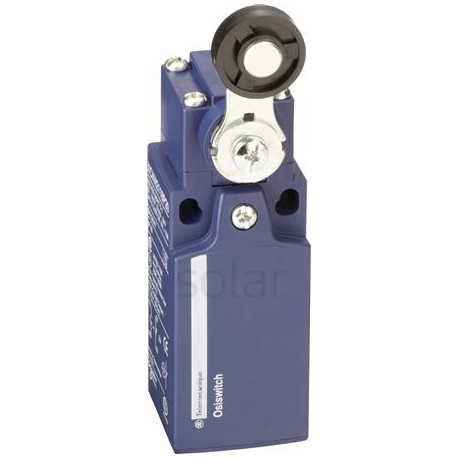

Limit switch 1R/1Z XCKN2118G11 SCHNEIDER ELECTRIC

Product description

A limit switch is a component of an electrical circuit in which it is a fucction of protection. Limit switches are most often used in control, protection and control systems. Most often the switches can be used in presses, robots, receivers and conveyors used in the manufacture of industrial machinery. This model is distinguished by very high electrical parameters and a robust insulating housing.

Technical data:

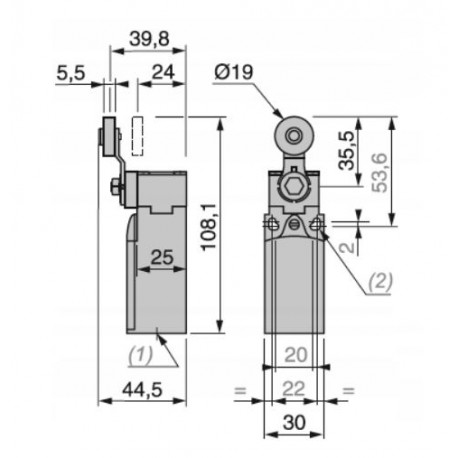

• Sensor length [mm]: 30

• Number of safety auxiliary contacts: 0
• Number of changeover contacts: 0
• Number of normally closed contacts: 1
• Number of normally closed contacts: 1

• Housing material: Plastic

• Standard compliant housing: Yes

• Switching element type: Rotary lever
• Electrical connection type: PG cable grommet

• Degree of protection (IP): IP66/IP67

• Sensor width [mm]: 31

• Ambient temperature under operating conditions [°C] to: 70

• Ambient temperatureunder operating conditions [°C] from: -25

• Forced disconnection: yes

• Sensor height [mm]: 65

• Rated operating current Ie for AC-15, 125 V [A]: 6
• Rated operating current Ie for AC-15, 230 V [A]: 3
• Rated operating current Ie for AC-15, 24 V [A]: 10
• Rated operating current Ie for DC-13, 230V [A]: 0.1000
