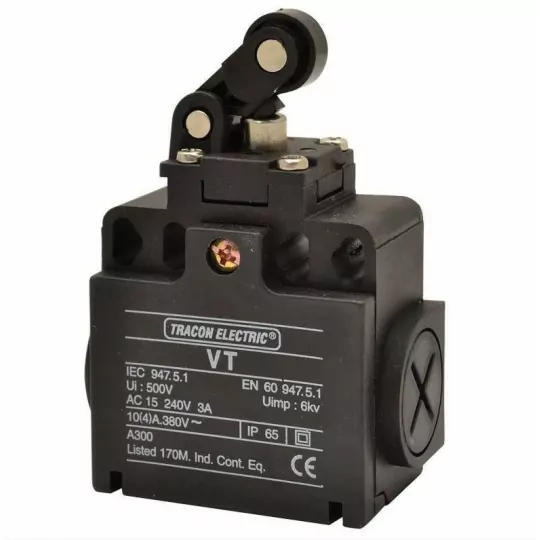

Limit switch with tone and roller 3A VT121 TRACON

Product description

A limit switch is a component of an electrical circuit in which it is a fucction of protection. Limit switches are most often used in control, protection and control systems. Most often the switches can be used in presses, robots, receivers and conveyors used in the manufacture of industrial machinery. This model is distinguished by very high electrical parameters and a robust insulating housing.

Technical data:

• Rated insulation voltage: 500V
• Rated thermal current: 10A
• Rated operating current: 2 A (AC15, 230V), 5 A (AC1, 230V), 0.3 A (DC13, 250V)
• Material: plastic, metal
• Mechanical life: 1x10000000 switching cycles
• Switching frequency: max. 1800 switches / hour
• Ambient temperature: -25 °C...+55 °C
• Wire cross section: 0.75-1.5mm2
• PG-11 cable glands
