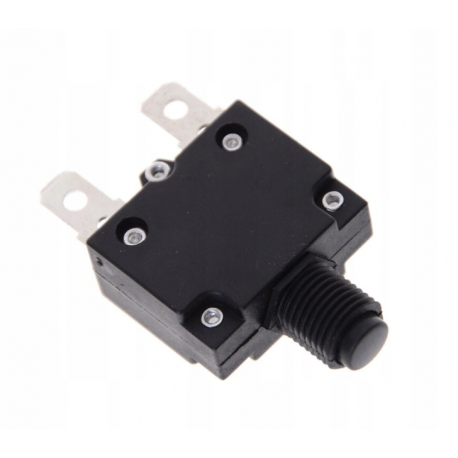

TP8 8A Kuoyuh thermal pump thermal switch

Long and demanding operation of equipment has a high probability of overload or short circuit. The only way with such high efficiency is to use a motor-thermal circuit breaker. This is a device designed to protect motors. The big advantage resulting from its use is the fast response and almost immediate cutting off of power. Motor-thermal circuit breakers are also recommended for the protection of equipment operating in harsh environmental conditions, as well as in the event of an increased risk of a short circuit, overvoltage or phase loss.

Technical data:

• Amperage: 8A
• Input voltage: 125/250V AC, 50V DC, and 50Hz or 60Hz
• Cutoff: 125V AC or 250V AC
• Voltage drop: less than 0.25V
• Reset within 10 seconds
• Color: black
• Manufacturer: KUOYUH
