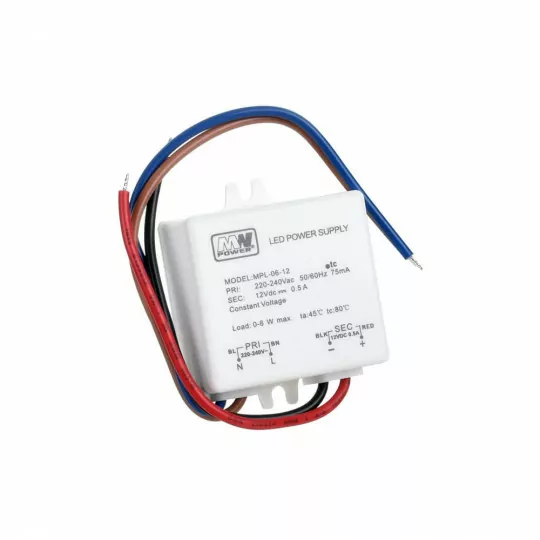

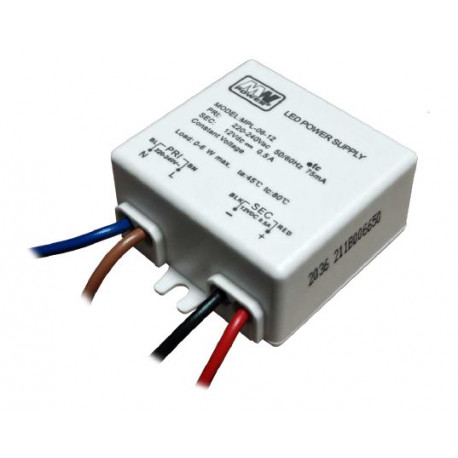

Switching LED power supply MPL-06-12LC 6W 12V 0,5A MW POWER

Product index: MPL-06-12
Price (with Tax.)
PLN19.99
0 qty.

Ask about product

* Required fields

14 days to return

Free shipping from 499 PLN

Ask a question +48 536 969 696

Technical information

Supply voltage
230V
Output voltage
12V
Rated power
6W

Product description

Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. POWER power supply is distinguished by high quality workmanship. The housing has been manufactured from the best materials available on the market. Thanks to this, it is resistant not only to the already mentioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.

What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for LED tapes, panels, or bulbs. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it.

Features:

  1. Protections: short-circuit / overload / over-voltage
  2. Tested under full load
  3. Housing suitable for mounting in surface and flush mount fi60 boxes
  4. Free air circulation cooling
  5. European input voltage range

Technical specifications

  • Type of power supply voltage
  • Mounting method flush-mounted
  • Ratedoutput voltage (V) 12V DC
  • Ratedoutput power (W) 6W
  • Protection class IP20
  • Nominaloutput current (A) 0.5A
  • Input voltage value range 176 ÷ 264VAC
  • Input voltage frequency range 47 ÷ 63Hz
  • Efficiency 78%
  • Output voltage tolerance +/- 4%
  • Current drawn from the mains (AC) 0.075A - 230VAC
  • Inrush current (max.) 15A - 230VAC
  • Power consumption in no-load condition 0.3W
  • Short-circuit protection yes
  • Overload protection yes
  • Overvoltage protection yes
  • Operating temperature -10°C ÷ +45°C
  • Protection class II
  • Dimensions (L x W x H) 52 x 21 x 43.5mm
  • Weight 0.032kg
