Technical information
Supply voltage
230V
Output voltage
12V
Rated power
150W
Product description
Voltage power supply is a switch mode product characterized by low power consumption at rest and high efficiency reaching 86%. The aluminum housing and small dimensions allow the device to be installed even in hard-to-reach places. It is designed to power LED lighting, work in industrial automation systems, machine control. It is also used in industrial electronics. It has a number of protections such as short-circuit, overload and overvoltage protection that guarantee trouble-free operation.
Technical data:
- Type of power supply voltage
- Surfacemounting method
- Rated output voltage (V) 12V DC
- Ratedoutput power (W) 150W
- Ratedoutput current (A) 12.5A
- Input voltage value range 90 ÷ 132VAC / 180 ÷ 264VAC (selectable by switch)
- Input voltage frequency range 47 ÷ 63Hz
- Output voltage adjustment range 10 ÷ 13.5V
- Output current adjustment range 0 ÷ 12.5A
- Efficiency 86%
- Output voltage tolerance +/- 1%
- Current drawn from mains (AC) 1.7A - 230VAC / 3.0A - 115VAC
- Inrush current (max.) 60A - 230VAC(25°C)
- Power consumption in no-load condition 0.5W
- Short-circuit protection yes
- Overload protection yes
- Overvoltage protection yes
- Thermal protection yes
- Operating temperature -20°C ÷ +70°C

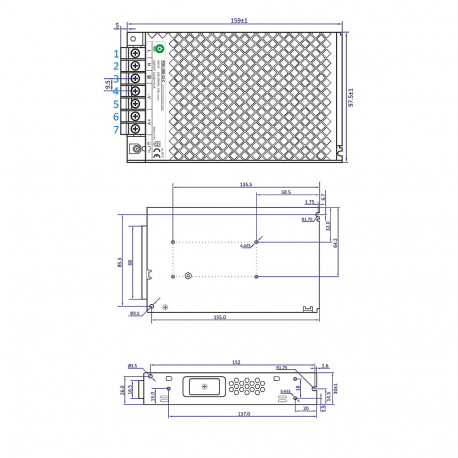

- Dimensions (L x W x H) 159 x 97 x 30mm
- Weight 0.45kg
