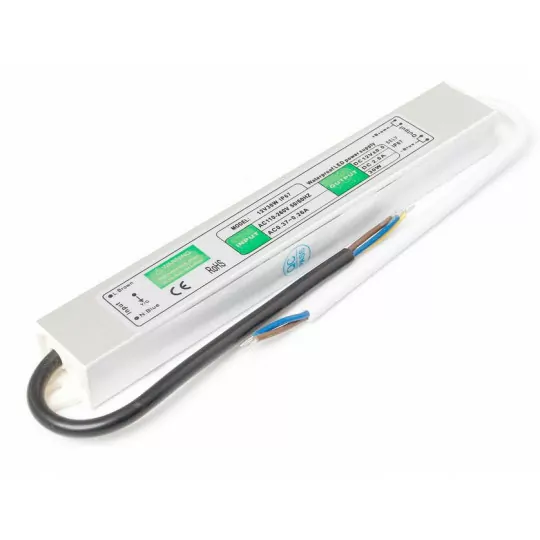

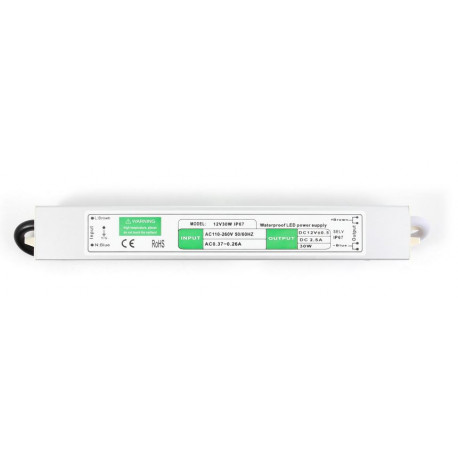

LED power supply FTPC30V12 12V 2.5A 30W POS MPL

Product description

Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. The power supply is distinguished by high quality workmanship. The housing was manufactured from the best materials available on the market. Thanks to this, it is resistant not only to the already mentioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.

What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for LED tapes, panels, or bulbs. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it.

Specifications:

• Input voltage: 180 ÷ 264V AC
• Rated power: 30 W
• Output voltage: 12V DC
• Current : 2.5 A
• Output current range: 0~2,5 A

Short circuit protection:

• Type : Output voltage cutoff. Automatic return to normal operation after the cause has ceased.

Overload protection:

• Range: above 110% of rated power, automatic return to normal operation after the cause ceases.

Thermal protection:

• Range: above 110% of rated power Automatic return to normal operation after the cause has ceased.

• Operating temperature: -20°C ÷ +45°C
• Ambient humidity: 45 ÷ 85% relative(non-condensing)
• Safety standards: EN61347-1, EN61347-2-13
• Insulation strength: EC - WY: 3.75kVAC
• Weight: 110g
• Dimensions (L x W x H): 155*50*17
