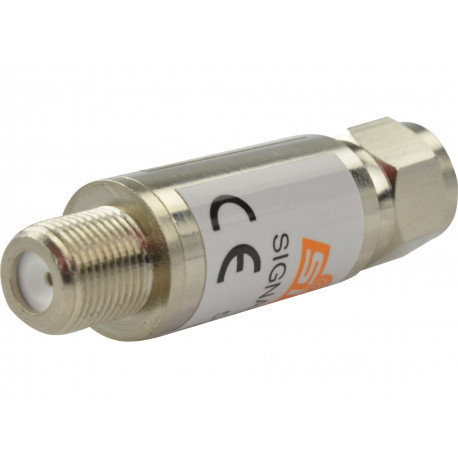

Signal RTV/SAT/"F" surge protector

Product description

The antenna amplifier is designed for mounting in antenna boxes. Ideal for weak signals with low signal-to-noise ratio. The shielded housing eliminates sensitivity to interference.

The antenna amplifier, as its name indicates, is used to amplify the antenna. Specifically, it is used to amplify the TV signal to improve its quality. An antenna amplifier can be necessary in many situations, such as when the antenna is far from the transmitter. Signal amplification will allow you to enjoy digital terrestrial TV without any interference. If, when receiving digital terrestrial TV, the picture stops, there are interruptions in the broadcast, and on top of that the picture changes color mostly to one color, it means that we should buy an antenna amplifier. We invite you to buy one.

Technical data:

• Compliance with standards: CE
• Operating band [MHz]: 5 - 1000 (1G); 1000-2400 (2G)
• Input: F plug
• Output: F socket
• Insertion loss [dB]: typical 0.8 (max ≤ 1.0) for 1G; typical 1.2 ( max ≤ 1.5) for 2G
• Matching [dB]: typical 12 ( min. ≥ 10)
• Maximum current [kA] for 8/20 [µs]: 8
• Impedance [Ω]: 75
• DC-current transition: Is
• DC breakdown voltage [V] at 100 [V/s]: 230 ± 42
• Shielding factor [dB]: >90dB (EN 50083-2/A1, class A)
• Protection level [V] at 1 [kV/µs]: ≤ 800
