DVB-T antenna amplifier APL-103e 10/14dB AMS B4033

Product description

An antenna amplifier, as its name implies, is used to amplify an antenna. Specifically, it is used to amplify the TV signal to improve its quality. An antenna amplifier can be indispensable in many situations, such as when the antenna is far from the transmitter. Signal amplification will allow you to enjoy digital terrestrial TV without any interference. If, when receiving digital terrestrial TV, the picture stops, there are interruptions in the broadcast, and on top of that the picture changes color mostly to one color, it means that we should buy an antenna amplifier. We invite you to purchase one.

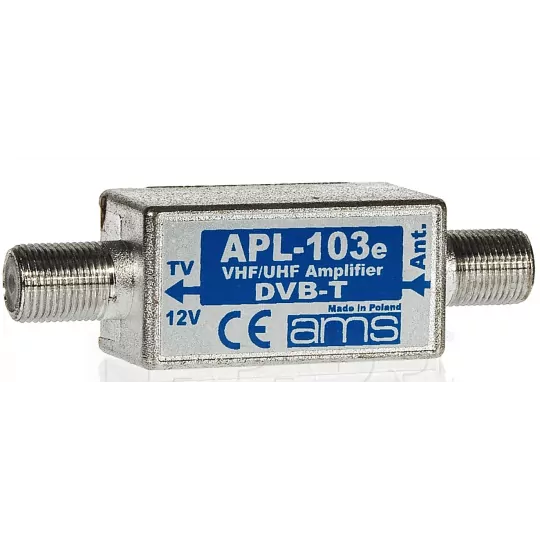

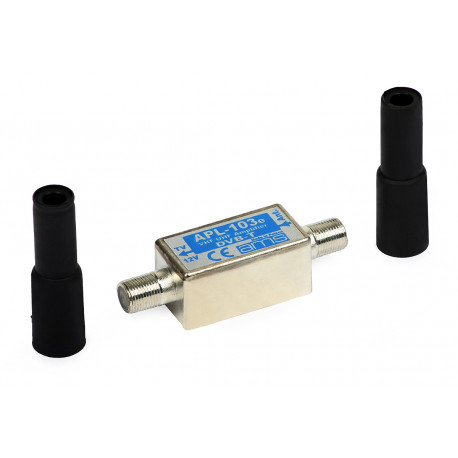

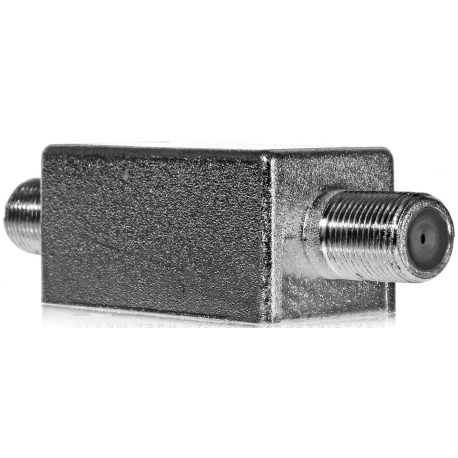

Antenna preamplifier APL-103e ideally amplifies DVB-T terrestrial TV signals from directional and broadband antennas (UHF and VHF bands) with built-in symmetrizer.

Technical specifications:

• number of inputs: 1x F-type
• number of outputs: 1x F-type
• band: 174 - 790MHz
• channels 6-12: 10dB
• channels 21-60: 14dB
• max. output level: 100dBμV 2kTV
• impedance: 75Ω
• self-noise: ≤4dB
• mismatch attenuation: >6dB
• power supply: 12V DC

• current consumption: 35mA
• operating temperature: -30ºC ~ 50ºC
