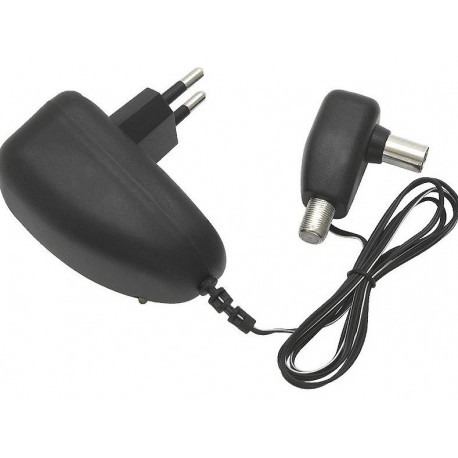

Antenna power adapter connector "F" 12V/100mA LBZ-03

Product description

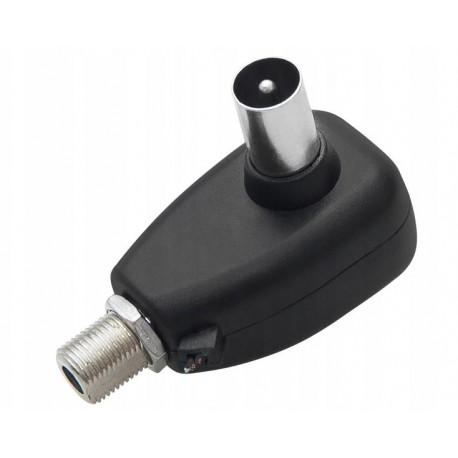

The power supply is designed for continuous operation, and is used to power antenna amplifiers via coaxial antenna cable. This is possible due to the use of a power separator located in the antenna plug housing, with which the power supply is equipped. Installation of the coaxial cable should be done according to the enclosed instructions. Correct operation of the power supply will be indicated by the indicator light on the power supply housing. In the case of faulty connection of the cable to the amplifier or antenna plug - separator (short circuit of the braid and inner cable), the control diode will not light up.

Technical data:

• Direct mounting capability : No
• Possibility of rail mounting : No
• Wall mounting possibility : No
• Output voltage 1 [V] to : 12
• Output voltage 1 [V] from : 12
• Short circuit immunity : No
• Suitable for security applications : No
• Supply voltage type : AC
• Electrical connection type : Flat plug connection
• Stabilized output voltage : No
• Stabilized : No
• Modular version : No
• Output voltage setting range : No
• Rated supply voltage for AC 50 Hz [V] to : 240
• Rated supply voltage for AC 50 Hz [V] from : 220
