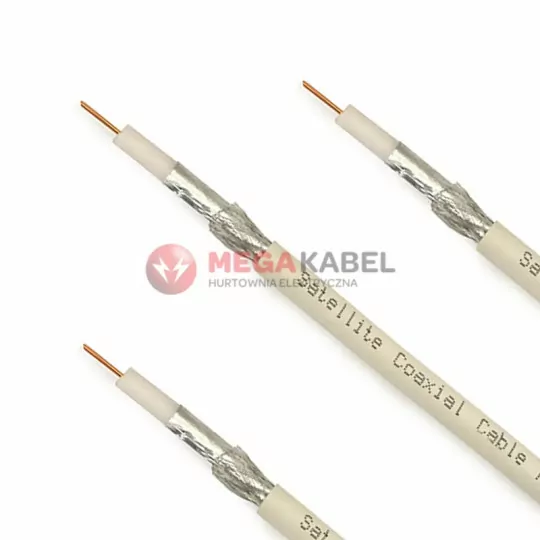

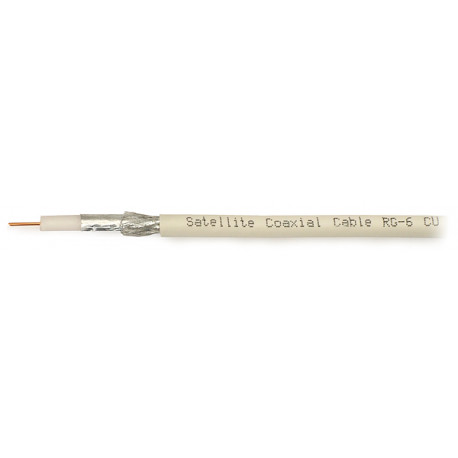

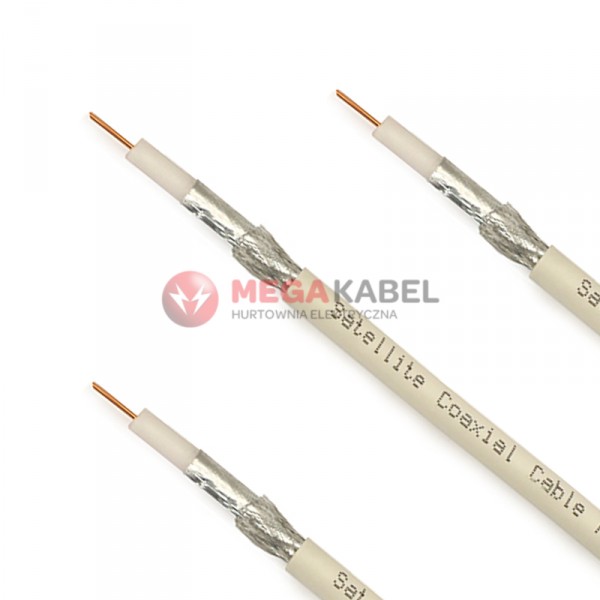

YWDXpek 75 ohm antenna coaxial cable WHITE
Product index: E1230_200
Price (with Tax.)
PLN1.84
Remaining order amount to obtain free shipping
PLN0.00
Order within 11 hours 56 min. and we will ship today
14 days to return
Free shipping from 499 PLN
Ask a question +48 536 969 696
Technical information
Color
White
Cable cross section
1 mm2
Cable type
Round
Product description
DIPOLNET 75 ohm RG-6 Cu E1230 coaxial cable meets the requirements for Class A in the entire transmission band of terrestrial DVB-T and satellite DVB-S/S2 (in the frequency range of 174 - 3000 MHz), and has 77% braid coverage that guarantees a high level of shielding and protects the useful signal from the influence of external interference.
Thanks to its high quality workmanship and good electrical performance, the cable enjoys unflagging popularity among many installers. Optimally selected flexibility of the sheath allows easy laying of the cable both in cable ducts and installation boxes or mounting boxes.
Name: RG-6 PVC DIPOLNET
Code: E1230
Inner core Material: Copper (Cu)
Diameter(mm ): 1,00
Dielectric:Material / Physical foamed polyethylene (PE)
Diameter(mm):4.76
Outer conductor:First screen / Al/PET foil
Second screen : Braid made of aluminum wires
Construction: 8x16x0.12mm
braid coverage: 77%
Outer sheath : Material / PVC
Diameter(mm ): 6,92
Core resistance(Ω/km): 21,91
Outer conductor resistance (Ω/km): 32,12
Impedance(Ω): 75
Unit capacitance (pF/m): 50
Wavelet truncation factor (%): 85,5
Reflection attenuation : 5-470MHz / dB / 26
470-1000MHz 24
1000-2000MHz 23
2000-3000MHz 22.9
Minimum bending radius(mm):70
Operating temperature range(ºC): -20...+70
