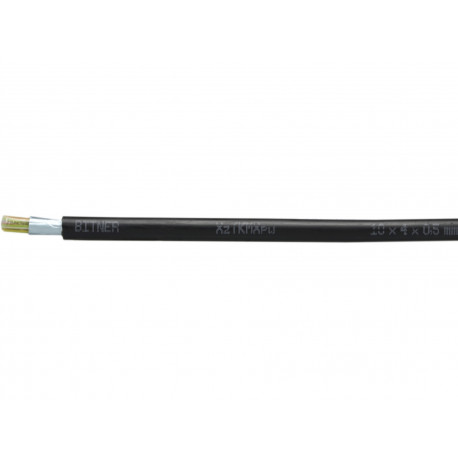

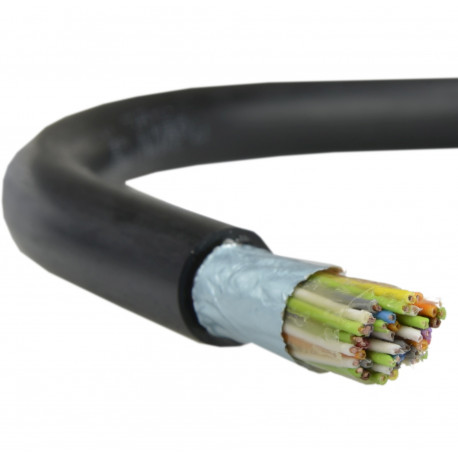

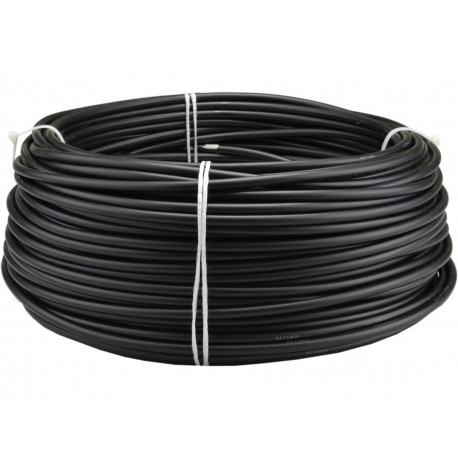

Data communication cable XzTKMXpw 3x2x0.5 MADEX

Product index: XZTKMXPW 3X2X0,5
Price (with Tax.)
PLN0.98
0 qty.

Ask about product

* Required fields

14 days to return

Free shipping from 499 PLN

Ask a question +48 536 969 696

Technical information

Color
Black
Number of strands
3
Cable cross section
0.5 mm2
Cable type
Round
Cable category
XzTKMX

Product description

Telecommunication cable is a very popular product in the department of telecommunication networks as well as Internet connections. Kabe is used for network connections from a pole to a building. The cable can be used directly in the ground. This is the safest way of placing it. At the same time there are no worries about short circuits caused by moisture or abrasion of the cable sheath.

The outer part of the cable is made of great quality materials, so that the entire cable is resistant to weather conditions and mechanical damage. The rubber made for the cable cover is rigid yet retains its best protective values. The cable comes in black color. We propose to place the cable in shielding pessels, which will provide additional protection for the cable.

Characteristics:

  • Cable type: telecommunications
  • Application :outdoor
  • Gel-filled, for laying directly in the ground
  • Resistant to UV radiation
  • Can be used in industry
  • Moisture barrier
  • Versatile: for many low-current applications
  • Standards: PN-T-90335:1992/Az1:1998; PN-T-90336:1992/Az2:1998; ZN-15/OPL-02

Technical data:

  • Manufacturer: MADEX
  • Cable profile: 10x4x0.5 mm
  • Max. outer diameter: 14.5 mm
  • Min. bending radius of permanent connection: 10 x Ø
  • Capacitance asymmetry between parent tracks in one quad k1 (max): 500 pF/500m
  • Capacitance asymmetry between parent tracks in adjacent fours k9-12 (max): 150 pF/500m
  • Conductor loop resistance (max): 191.8 Ω/km
  • Insulation resistance of conductors (min): 1500 MΩ x km
  • Effective capacitance of pairs (average / max): 50/55 nF/km
  • Operating temperature: -40 to +70 °C
  • Laying temperature: -10 °C to +50 °C
  • Weight: 145.0 kg/km
