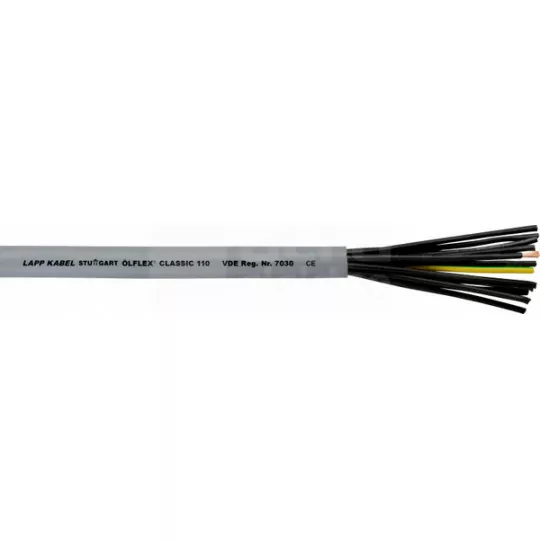

LGY 12x1 PVC Olflex control cable

Product description

Cable designed for installation inside equipment and luminaires. To be permanently laid in installation pipes or other conductor covers, only for signaling or control circuits. It is a multi-stranded, flexible copper cable with plain polyvinyl chloride insulation It can be used in installation pipes, in closed circuits and for making connections in electric power equipment.

Technical data:

• Permissible cable temperature for mobile connections [°C] to : 70
• Permissible cable temperature for mobile connections [°C] from : -5
• Permissible cable temperature for permanently laid cable [°C] to : 80
• Permissible temperature of permanently laid cable [°C] from : -40
• Conductor identification : Numbers
• Conductor insulation : PVC
• Conductor class : Class 5 = flexible
• Insulation color : Gray
• Number of conductors : 12
• Outer sheath material : PVC
• Rated voltage U [V] : 500
• Rated voltage U0 [V] : 300
• Flame retardant : In accordance with EN 60332-1-2
• Low temperature resistance (according to EN 60811-1-4) : No
• Oil resistant (according to EN 60811-2-1) : Yes
• Approximate outside diameter [mm] : 10.5000
• Rated conductor cross-section [mm2] : 1
