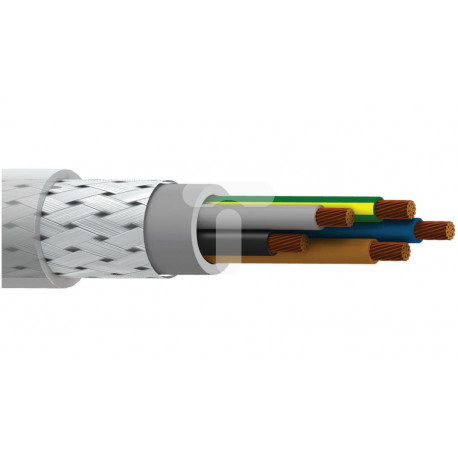

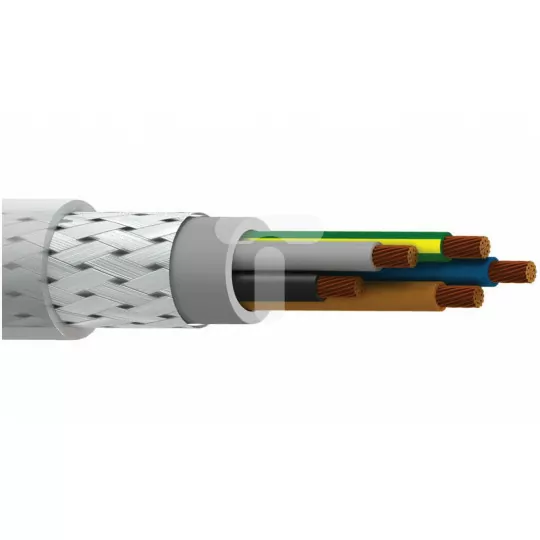

LiYCY 2x0.5 shielded grey control cable

Product description

LIYCY control cable can be used for power supply subject to the allowable current carrying capacities specified in the manufacturer's data sheet. The cables are suitable for permanent installation and for mobile connections inside buildings in dry and humid areas. The cable sheath has good oil resistance, is self-extinguishing and does not spread flame.

The special design made it possible to achieve high flexibility and small dimensions while maintaining mechanical strength. The cable coating has good oil resistance. The cables are suitable for permanent installation and for mobile connections inside buildings indry and humid areas . The common shield in the form of braided copper wires provides very good protection against external electromagnetic fields.

Technical data:

• Code: 593488
• Manufacturer: HELUKABEL
• Permissible temperature of permanently laid cable [°C] from: -40
• Rated voltage U0 [V]: 300
• Rated voltage U [V]: 300
• Permissible temperature of permanently laid cable [°C] up to: 80
• Permissible cable temperature for mobile connections [°C] from: -5
• Permissible cable temperature for mobile connections [°C] up to: 80
• Oil-resistant (according to EN 60811-2-1): Yes
• Approximate cable weight [kg/km]: 31,3
• Approximate outer diameter [mm]: 4.8000
• Insulation color: Gray
• Outer shell material: PVC
• Common shield: Braid
• Conductor insulation: PVC
