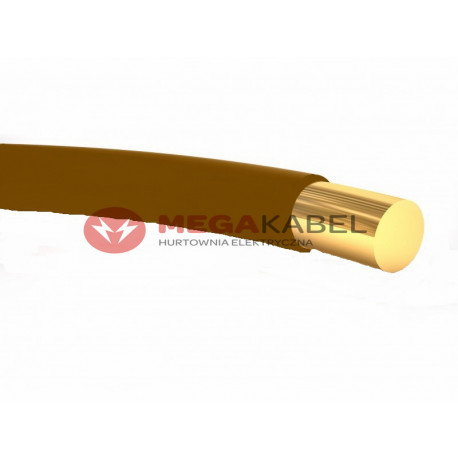

Installation cable DY 1,5 brown

Product description

DY wire is a copper wire, composed of a single wire and having polyvinyl chloride insulation. If the designation Yc appeared here instead of Y, it would mean heat-resistant insulation. This type of cable works well in dry areas. DY cables can be laid in pipes both on and under plaster. With their help we will connect lighting and control devices, etc.

Technical data:

• Rated conductor cross-section [mm2] 1.5000
• Permissible temperature of permanently laid cable [°C] up to 70
• Shielding No
• Approximate outer diameter [mm] 2.9000
• Low smoke emission (according to EN 61034-2) No
• Flame retardant According to EN 60332-1-2
• PVC conductor insulation
• Oil-resistant (in accordance with EN 60811-2-1) No
• Halogen-free EN 50267-2-2 No
• Rated voltage U0 [V] 300
• Resistance to low temperature (according to EN 60811-1-4) No
• Insulation color Brown
• Rated voltage U [V]500
• Approximate cable weight [kg/km] 20
• Class of conductorClass 1 = single conductor
• Permissible temperature of permanently laid cable [°C] from-40
