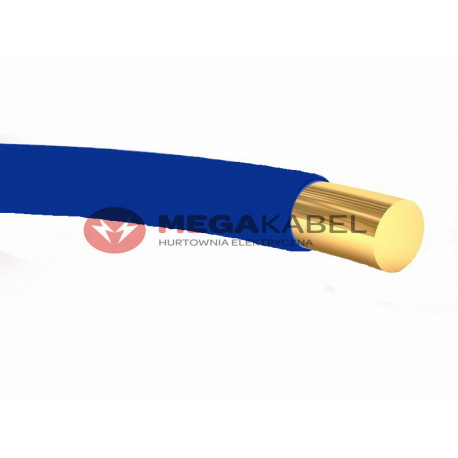

Installation cable DY 2,5 blue

Product description

DY wire is a copper wire, composed of a single wire and having polyvinyl chloride insulation. If the designation Yc appeared here instead of Y, it would mean heat-resistant insulation. This type of cable works well in dry areas. DY cables can be laid in pipes both on and under plaster. With their help we will connect lighting and control devices, etc.

Technical data:

• Ean 5900424001469
• Permissible temperature of permanently laid cable [°C] up to 70
• Rated voltage U [V] 500
• Approximate cable weight [kg/km] 31
• Permissible temperature of permanently laid cable [°C] from -40
• Approximate outer diameter [mm] 3.3000
• Rated voltage U0 [V] 300
• Conductor class Class 1 = single conductor
• Low smoke emission (according to EN 61034-2) No
• Rated conductor cross-section [mm2] 2.5000
• PVC conductor insulation
• Oil-resistant (in accordance with EN 60811-2-1) No
• Insulation color Blue
• Halogen-free EN 50267-2-2 No
• Flame retardant According to EN 60332-1-2
• Low temperature resistance (according to EN 60811-1-4) No
• Shielded No
