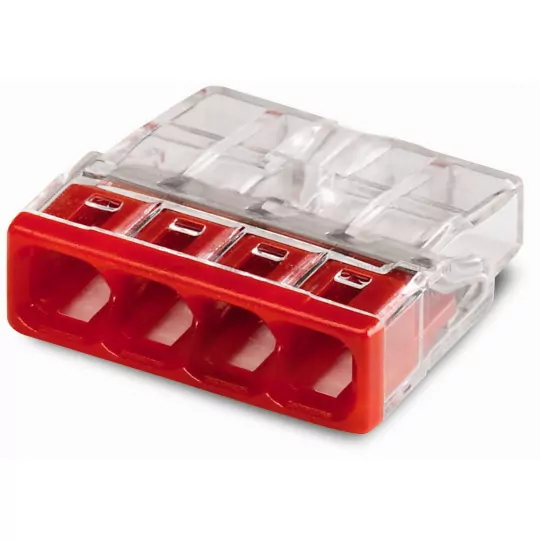

MINI 0.5-2.5mm 4-wire WAGO quick connector

Product description

The WAGO connector is a component of the installation design without which it would be difficult to create a new, or rework an old installation. This modern solution has made the product very popular among electricians and workshop handymen. The connectors can be used for all connection wires such as light fixtures, power controllers or sound systems.

The compact solution allows the installation of stripped wire conductors with a cross-section of 0.5mm² to 2.5mm². This feature is to take advantage of the rigidity of the wires to overcome the resistance of the clamping spring. As the inventor of spring connection technology, WAGO has decades more experience than competing companies in the market. Intensive research, countless studies and feedback from thousands of users around the world form a base whose value cannot be overestimated.

Technical data:

• Number of pins: 4

• Cover color: red

• Sensor connection technology: PUSH WIRE®

• Mounting type: Push-in

• Material of wire to be connected: copper

• Wire cross section: 0.5 ... 2.5 mm2

• Cable stripping length: 11 mm

• Rated current: 24A

• Rated voltage: 450V

• Width: 18 mm

• height: 5.8 mm

• depth: 16.7 mm

• Gross weight: 1.3 g
