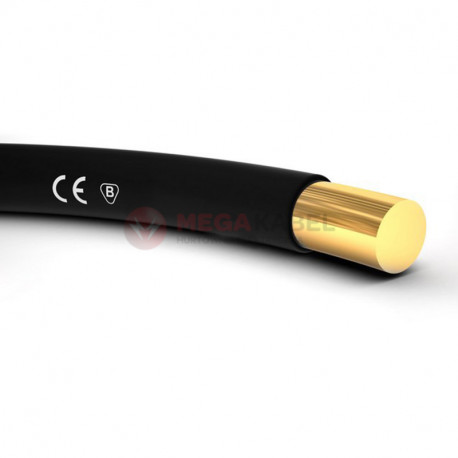

DY 10 black wire

Product description

DY cable is a copper wire, composed of a single wire and having polyvinyl chloride insulation. Inside there is one copper wire . If the designation Yc appeared here instead of Y, it would mean heat-resistant insulation. This type of wire works well in dry areas as well as a connection to electrical appliances as well as lighting elements in your home. It is a flexible product which allows it to work with various types of pipes. In turn, the middle part of the cable is made of copper wire, which allows it to be technically durable for many years. The colored inner wires ensure simple replacement during installation alterations. The cable comes in black color.

Technical data:

• number and rated conductor cross-section (piece x mm2): 1X10
• rated insulation thickness: 1.0 mm
• approximate outer diameter of the cable: 6.2 mm
• maximum resistance of the conductor at 20°C: 1.83 Q/km
• minimum insulation resistance at 70°C: 0.0075 M Ω x km
• rated voltage: 450/750 V
• conductor: single-stranded copper, class 1, as per PN-EN 60228
• insulation color: black
• insulation: insulating polyvinyl chloride
