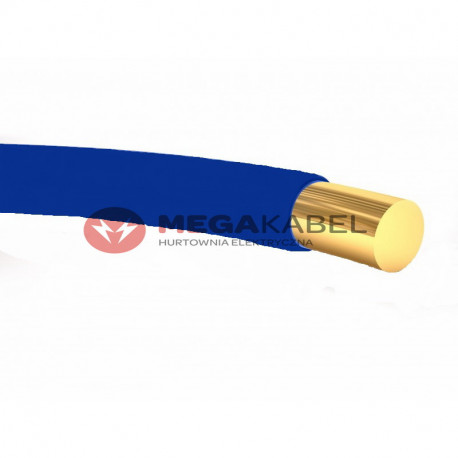

DY 1.0 blue wire
Product index: 1123-112AD-YY012
Price (with Tax.)
PLN0.42
14 days to return
Free shipping from 499 PLN
Ask a question +48 536 969 696
Technical information
Color
Blue
Number of strands
1
Cable cross section
1 mm2
Cable type
Round
Cable category
DY
Product description
DY wire is a copper wire, composed of a single wire and having polyvinyl chloride insulation. If the designation Yc appeared here instead of Y, it would mean heat-resistant insulation. This type of cable works well in dry areas. DY cables can be laid in pipes both on and under plaster. With their help we will connect lighting and control devices, etc.
Technical data:
- Ean 5907559500676
- Low smoke emission (according to EN 61034-2) No
- Permissible temperature of permanently laid cable [°C] up to 70
- Class of conductor Class 1 = single-wire
- Shielding No
- Flame retardant According to EN 60332-1-2
- Rated voltage U0 [V] 450
- Insulation color Blue
- Rated voltage U [V] 750
- Halogen-free EN 50267-2-2 No
- Oil resistant (according to EN 60811-2-1) No
- Approximate outside diameter [mm] 3.1
- PVC conductor insulation
- Resistant to low temperature (according to EN 60811-1-4) No
- Approximate cable weight [kg/km] 13
- Rated conductor cross-section [mm2] 1
- Permissible temperature of permanently laid cable [°C] from -40
