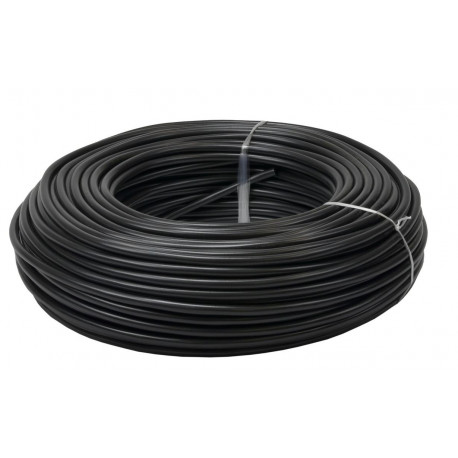

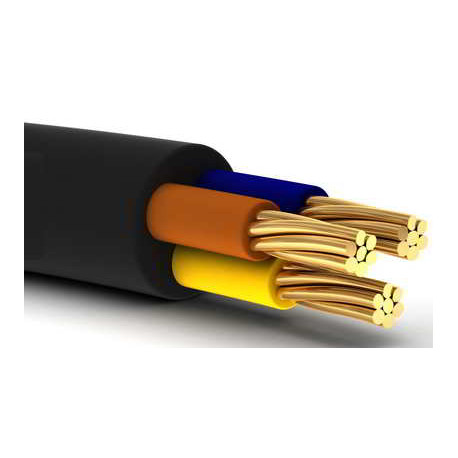

YLY 3x1.5 earth cable

Product description

Multicore low-voltage automotive cable with copper wire conductors, polyvinyl chloride insulation and polyvinyl chloride sheath, intended for use in temperate climates. The cable is subject to the Low Voltage Directive 73/23/EEC. The cable is designed for low-voltage electrical connections up to 50V in car trailers. The cable is also suitable for the wiring of tow bar armament in road vehicles.

The cable is weatherproof, designed for operation at temperatures from -40 to 70°C. The highest permissible long-term temperature of the conductor during operation of the cable should not exceed 70°C. The ambient temperature during storage must not exceed 40°C, during sunshine 60°C.

Technical data:

• Permissible temperature of permanently laid cable [°C] to : 70
• Permissible temperature of permanently laid cable [°C] from : -40
• Ean : 5907559507767
• Bundle shield : None
• Common shield : None
• Conductor identification : Color
• Conductor insulation : PVC
• Conductor class : Class 2 = multi-stranded
• Insulation color : Black
• Number of conductors : 3
• Outer sheath material : PVC
• Rated voltage U [V] : 1000
• Rated voltage U0 [V] : 600
• Flame retardant : In accordance with EN 60332-1-2
• Low smoke emission (according to EN 61034-2) : No
• Low temperature resistance (according to EN 60811-1-4) : No
• Oil resistant (according to EN 60811-2-1) : No
• Approximate cable weight [kg/km] : 126
• Approximate outside diameter [mm] : 11
• Bundles : No
• Rated conductor cross section [mm2] : 1.5000
