TP-LINK 8-port gigabit switch TL-SG1008D

Product description

The TP-LINK TL-SG1008D8-Port Gigabit Switch allows you to easily increase your Ethernet bandwidth to gigabit connections. With it, you can increase the speed of connections to servers and other important connections in your network. The TL-SG1008D switch is an energy-efficient device. Thanks to innovative power-saving technology, the device consumes less power, making it an eco-friendly solution, ideal for both home and office spaces.

Gigabit switch

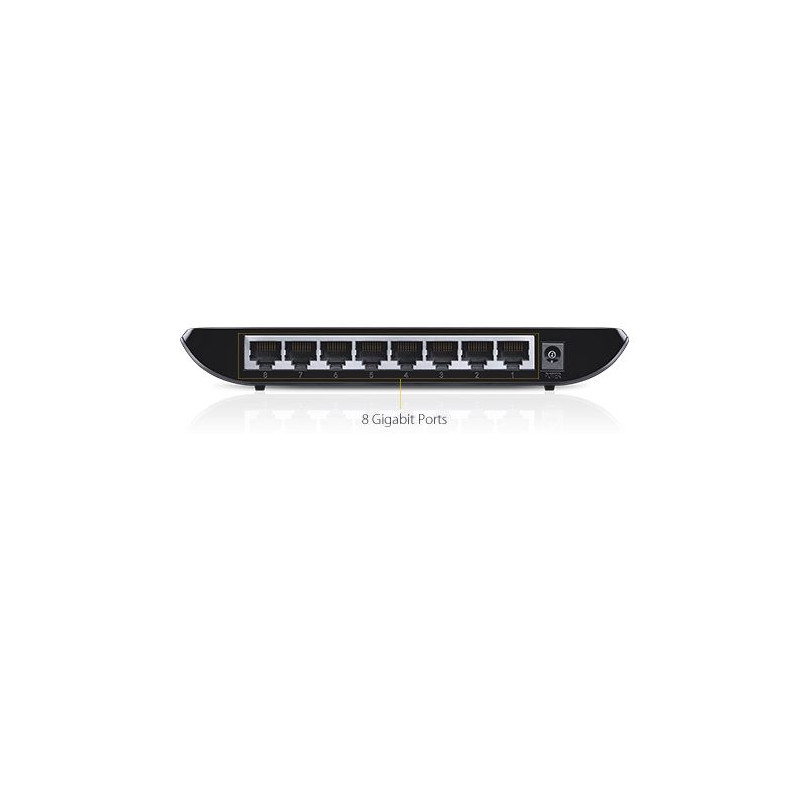

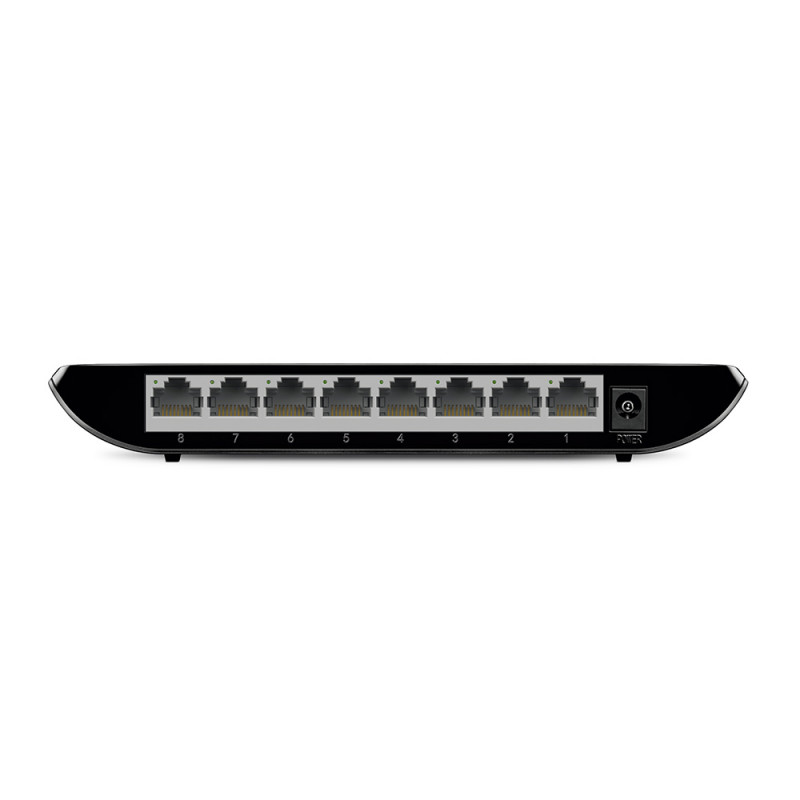

Equipped with 8 10/100/1000Mbps ports, the TL-SG1008D switch boosts network bandwidth for instant transfer of large files. Users in homes, offices, workgroups or production environments can now transfer larger files that require high transmission bandwidth. This allows the network to exchange graphics, CGI, CAD or multimedia files instantly.

Energy-efficient Ethernet network

When creating a gigabit Ethernet network, you can now choose an environmentally friendly solution! The TL-SG1008D switch uses technology that enables you to enjoy a high-bandwidth network with great energy savings. The device automatically adjusts the required power consumption depending on the connection status and cable length, reducing power consumption.

Power off unused ports

Traditional network switches consume a significant amount of power for ports, even when connected devices are turned off. The TL-SG1008D switch automatically detects the connection status of each port reducing the power consumption of inactive ports.

Power consumption dependent on cable length

In theory, the use of shorter cables should reduce power consumption due to less energy loss along their length. However, most devices consume the same amount of energy, regardless of cable length. The TL-SG1008D switch analyzes the length of the cables connected to it and adjusts the amount of power consumed by the ports accordingly.

Easy to use

The switch's automatic features make installation hassle-free and require no configuration. Thanks to the MDI/MDIX function, there is no need to use crossover cables. The auto-negotiation function enables the switch to automatically detect the speed of devices connected to each port (10, 100 or 1000Mbps) ensuring optimal transmission performance.

Specifications:

• Ports: 8 RJ45 10/100/1000Mbps ports.
• Automatic speed negotiation and automatic crossover (Auto-MDI/MDIX)
• Fanless: Yes
• Physical security: No
• Power supply: External power supply (Output power: 9 V DC/0.6 A)
• Jumbo frames: 15 KB
• Switching performance: 16 Gbps
• Dimensions (S x G x W): 180mm * 90mm * 25.5mm (7.1*3.5*1.0 inches)
• Max power consumption: 4.63 W (220 V/50 Hz)
• Amount of heat generated: 15.80 BTU/h
• Transmission method: Store and Forward
• MAC address table: 4K
• Advanced features: Green Ethernet technology
• Data flow control: 802.3X Back Pressure802.1p/DSCP QoS (for V7 and above).
• Certifications: FCC, CE, RoHs
• Permissibleoperating temperature: 0℃~40℃ (32℉~104℉)
• Permissible storage temperature: -40℃~70℃ (-40℉~158℉)
• Permissible humidity: 10%~90%, non-condensing
• Permissible storage humidity: 5%~90%, non-condensing
