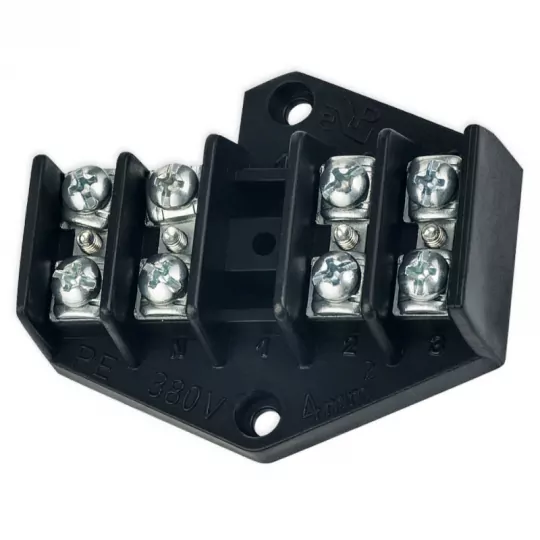

Branch plate 4x4mm2 0952-00 ELEKTRO-PLAST Nasielsk

Product description

The 4x4mm2 product is also referred to by professional electricians and installers as a branch connector. The branch ring is mainly used when making wire connections in junction boxes, electrical equipment and machinery, as well as in boxes. The product should only be used indoors.

The ring has five current paths. It supports conductors with a cross-section not exceeding 4 mm2. i. The product provides a solid fixation of cables, so that they will perform their function perfectly for a long time.

Technical data:

• Commercial designation 0952-00
• Product color black
• Type of switching equipment
• Number of current circuits 4
• Rated current In 16 A
• Rated voltage Un 380 V~
• Protection class II
• Max cross-section of connecting wires 4 mm²
• Operating temperature -25°C ÷ +100°C
• Dimensions (W × H × D) 62 × 53 × 18 mm
• CE certifications
• EN 60998-2-1 standards
