Product description

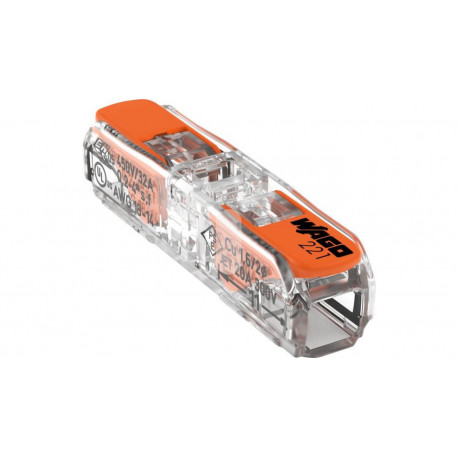

Lever-actuated conductor connection terminal block; for all types of conductors; max. 4 mm²; 2-wire; housing color transparent; Transparent cover; ambient temperature max. 85 °C (T85); 4.00 mm²; transparent.
Combines all the well-known advantages of the 221 series connection terminals in a slim design: a universal wire connection that is completely tool-free and provides visibly secure wire contact thanks to lever technology.
✅ Technical data:
- rated parameters according to EN 60664
- ratedvoltage (II/2) 450V
- rated surge voltage (II/2) 4kV
- ratedcurrent 32A
- legend of rated parameters (II/2) ≙ surge category II/pollution degree 2
- ratedvoltage UL 600V
- ratedcurrent UL 20A
- total number of terminals 2
- single wire 0.2 ... 4 mm² / 20 ... 14 AWG
- multi-stranded conductor 0.2 ... 2.5 mm² / 18 ... 14 AWG
- Stranded wire 0.2 ... 4 mm² / 18 ... 14 AWG
- cable insulation length 11 mm / 0.43 in
- width 8.1 mm / 0.319 in
- height 8.9 mm / 0.35 in
- depth 35.5 mm / 1.398 in
- flammability class to UL 94 V2
- weight 2.4g
