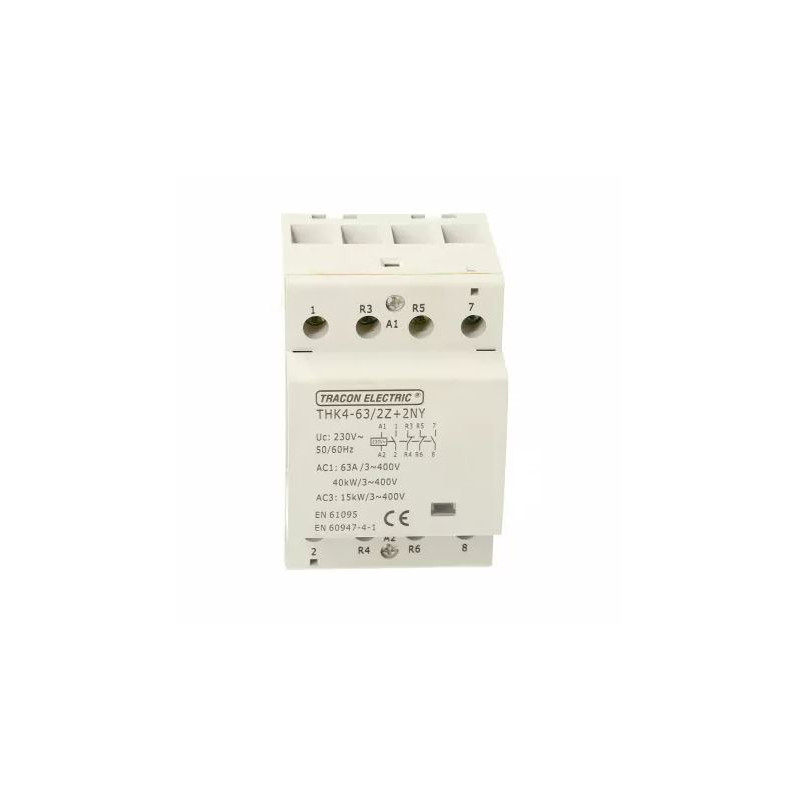

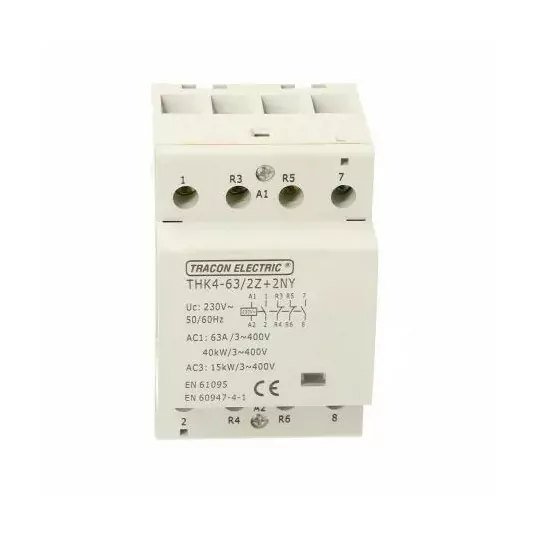

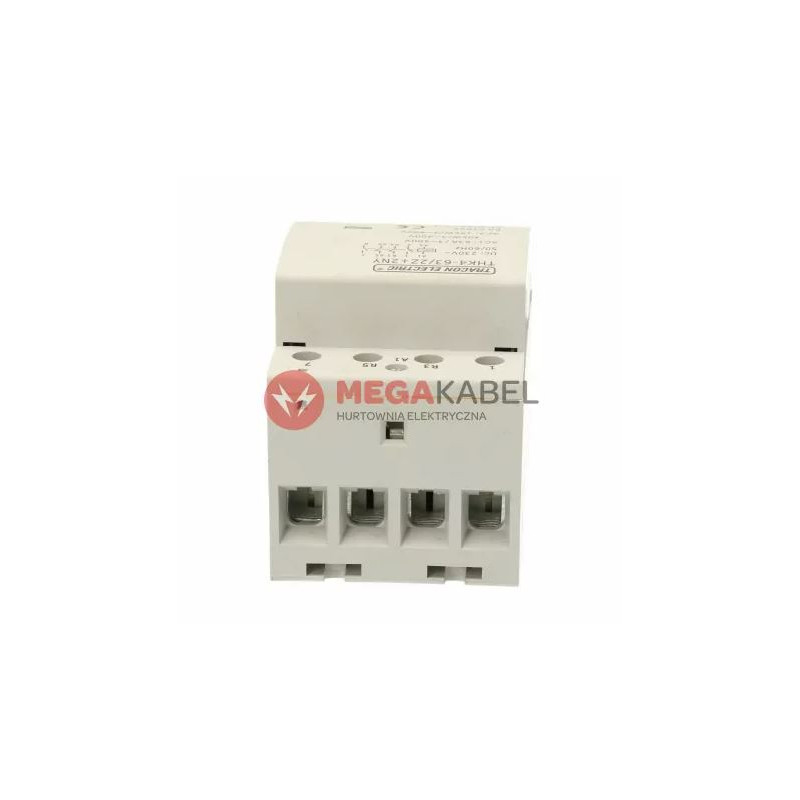

Installation contactor 63A 4P THK4-63/2Z+2NY 230VAC TRACON

Product description

Installation contactor is otherwise known as a mechanical switch, it is designed to create a sense of security for users of the electrical system. It also provides a more efficient and effective operation of the entire connected electrical system. This equipment is mounted on rails - you just need to connect the contactor to the circuit. This helps in its faster installation or removal. The key elements of the internal construction, responsible for the operation of the device, are the working contacts - one or more pairs, the coil and the solenoid.

This product works by transmitting a current or voltage signal. When the appropriate voltage is received, the contacts close spontaneously. They can also work with electrical overloads in the installation. This is a product that helps the operation of many electrical devices, extending their life and minimizing the risk of failure.

Technical data:

• Rated voltage: 230/400 V AC.
• Operating voltage: 230 V AC.
• Rated current: 63 A.
• Number of contacts: 2xNO + 2xNC.
• Rated operating current: AC1/AC7a: 63 A, 15 A, AC7b: 20 A .
• Mounting on TH35 rail: 35x7.5 mm.
• Size of connected wires: 1.5-25 mm.
• Rated insulation voltage: 500 V.
• Mechanical strength: x 1,000000.
• Ambient temperature: -25...+ 55 deg C.
• Degree of protection: IP20.
• Recommended fuse: 63A gG.
