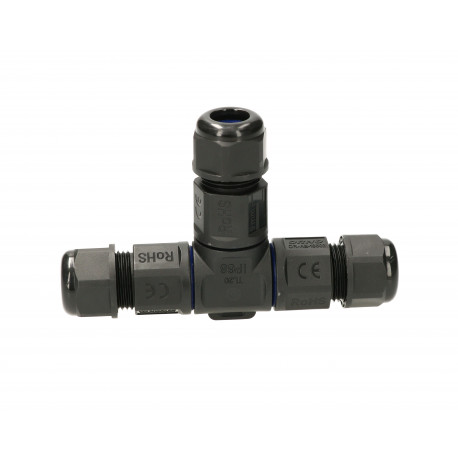

Cable connector tee 3x4 IP68 OR-AE-13602 Orno

Thecable joint is one of the components of the electrical installation. It is used to connect three threaded rods. There are also threaded sleeves inside, which are great for insulating the installation cables. The gland is equipped with a thick gasket, which thoroughly seals the inserted wires. The connector is suitable for both internal and recessed installation.

High quality product of the Polish company ORNO. The level of workmanship is incomparable to products imported from China. ORNO is a POLISH PRODUCER in the wiring industry. It specializes in wiring fixtures and surface-mounted boxes. The company makes boxes only from the highest quality materials and undergoes a demanding inspection.

Technical data:

• Connector type: T-type tee
• Number of wires: 3
• Cable diameter: 6-12 mm
• Conductor cross section: 4 mm²
• Rated voltage: 450V
• Current: 25A
• Contact material: Nickel-plated brass
• Housing material: Polyamide 6
• Flame retardant housing: yes
• Enclosure flammability class UL94: V1
• UV resistance: yes
• Degree of protection: IP68
• Dimensions (W / H / D [mm]): 104 / 78 / Ø 24
• Connection type: screw
