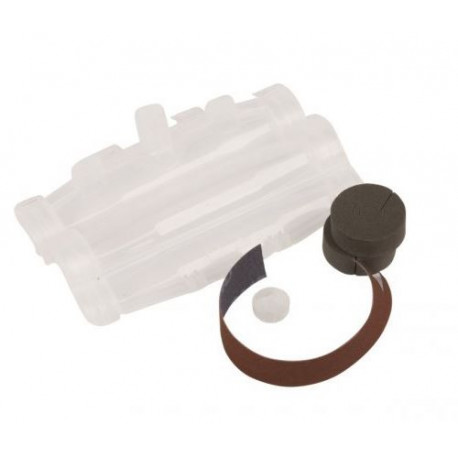

Resin cable joint 1.5-10mm 91-NBA1 470W 3M

Product description

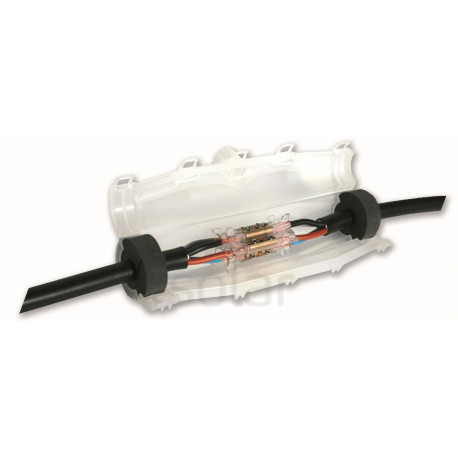

Resin cable joints are used for permanent connection of electrical insulation. They can be used to connect cables underground, underwater or in installation ducts, for example, to connect a building to the power grid. Thanks to its design and the materials used in production, the coupler is resistant to mechanical damage as well as external conditions. It has a high degree of protection against water, dust moisture, etc.

Method of use:

Step 1: Take out the transparent two-chamber aluminum-coated sachet from the bag.

Step2: Open the seal between the resin and hardener chambers by squeezing the sachet.

Step3: Mix the ingredients by kneading the sachet thoroughly.

Step4: The color change to the target color indicates that the ingredients have been mixed properly.

Step5: Press the nozzle firmly against the intermediate ring.

Step6: The nozzle fits snugly into the hole located in the top cover of the coupler and allows the resin to be poured without air bubbles.

Technical data:

• Ean 8021684691027
• Model Cast resin
• Suitable for N(A)YY
• With coaxial shield No
• Voltage range 0.6/1 kV
• Approved for mining sector No
• With screw connectors No
• Rated conductor cross section from/to [mm2] up to 10
• Rated conductor cross section from/to [mm2] from 1.5
