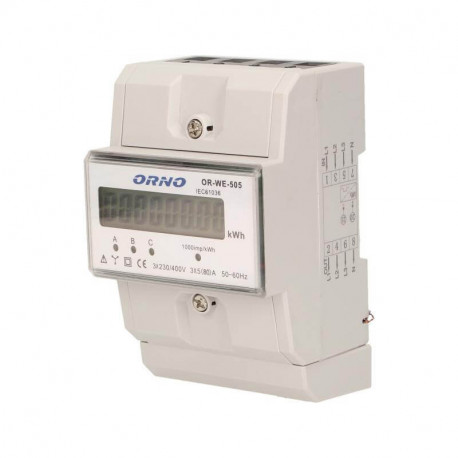

3-phase electricity meter OR-WE-505 ORNO

An electricity meter can colloquially be called a power consumption meter. It counts, measures and records data on the amount of electricity used in your home. It is an integral part of the completion of any installation. Each such device is equipped with an LED display, thanks to which we can easily read the values given on it. This model of meter is mounted on an aluminum rail which is mounted to connect all the installation components to form a whole. The installation is simple and safe.

The product is powered by a maximum current voltage of 230V. The meter is made of excellent quality materials so that it has an appropriate degree of tightness. It is a durable and stable device.

Technical data:

• power supply: 3x230V/400V AC, 50/60Hz
• display: LCD (number of digits 6+2=000000.00 kWh)
• current: 3 x 5(80)A
• pulse frequency: 1000 imp/kWh
• current consumption indication: 3xLED red
• readout signaling: LED red
• degree of protection: IP20
• rail mounting: 35 mm
• dimensions: 75 x 116.5 x 65 mm (W/H/D)
