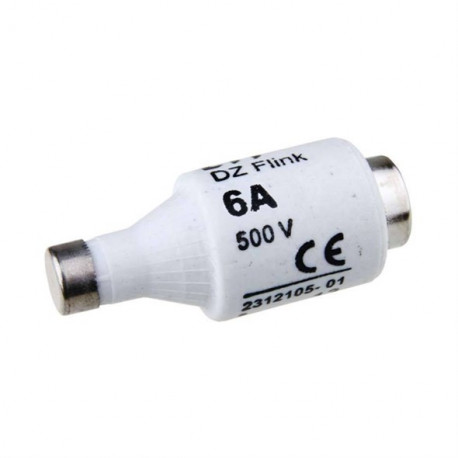

Inlet gF 6A/E27 BIWTS 500V DII ETI

Product description

Fuse-links are devices that are used to protect power lines from harmful and dangerous effects of short circuits and overloads. The presented model is described by the manufacturer - ETI - with gL/gG characteristics. This means that the device provides full-range protection. The insert is designed to protect primarily wires and cables (gL) and general purpose equipment. When using it, it is worth paying attention to the electrical parameters of the device. This is because the product operates at the rated voltage, the value of which is equal to 500 V. In turn, the value of the rated current in this case is 6A.

The device is equipped with a practical, top indicator. The presented model is available in NH2C size. The product is part of the innovative WT-NH line produced by the aforementioned ETI concern.

The time-current characteristics of the fast gF inserts are described by two letters, of which:

• g - stands for the range of the insert's breaking capacity. A general-purpose insert, the breaking capacity of which is contained starting from the current that burns through the fusible element in one hour, up to and including the rated breaking capacity,

• F - means the category of use of the insert

Technical data:

• ETI Code 002312103

• Description DII DZ 6A/500V

• DZ characteristics

• Tripping characteristic Fast

• Rated voltage AC (V) 500

• Rated current (A) 6
• Type D
• Size DII
• AC short-circuit breaking capacity (V) 50
• DC short-circuit breaking capacity (V ) 8
• DC rated voltage (V ) 250

• Dimensions E27

• Indicator Visible top
