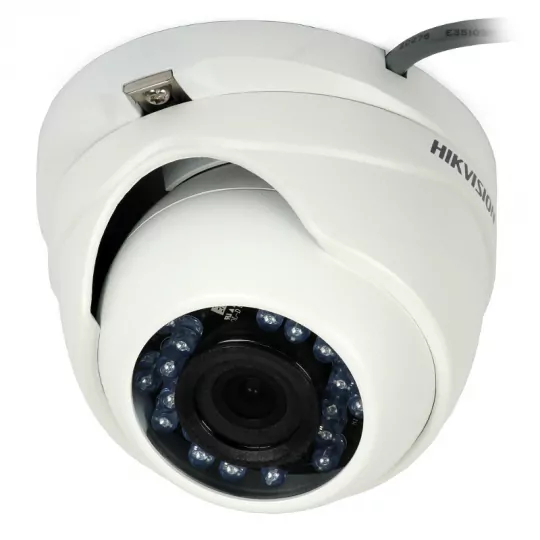

HD-TVI ceiling camera DS-2CE56D0T-IRM 2Mpix Hikvision.
Product index: M7503
Price (with Tax.)
PLN135.00
14 days to return
Free shipping from 499 PLN
Ask a question +48 536 969 696
Product description
The Hikvision DS-2CE56D0T-IRM3 M7503 camera is designed for use in monitoring systems built on HD-TVI DVRs. The camera generates images of 1080p resolution. With a sensitivity of 0.01 lx and a built-in IR illuminator with a range of up to 20 m, the resulting image is of high quality and good performance even in low light.
HD-TVI ( High Definition Transport Video Interface) is a digitally processed signal transmission technology.
This system allows the transmission of high-definition video (up to 1080p) via coaxial or twisted-pair cable (after using special video transformers). The transmitted image is in the form of an analog signal, with a much wider transmission bandwidth than CVBS. The signal is not compressed, making the image more faithful and clearer during live viewing. Its advantage is the lack of latency and easier system configuration compared to IP cameras.
Despite the low price, D0T cameras in daytime mode are characterized by high image quality and 1080p resolution, in nighttime mode the sensitivity is 0.01 lx.
The main advantages of HD-TVI systems:
- no lag,
- faithful image in live view due to lack of compression,
- transmission using coaxial cable,
- high resolution - available options: 720p, 1080p and 3Mpix,
- Triad DVRs - support for HD-TVI, CVBS and IP cameras,
- high resistance to electromagnetic interference, thanks to the use of synchronous QAM amplitude modulation and separation of chrominance and luminance signals,
- much easier system configuration compared to IP-based systems,
- two-way communication - control of camera OSD and PTZ cameras via signal cable directly from the DVR,
- long transmission range.
HD-TVI system has the ability to transmit data of different types, using a common single cable. It allows to transmit the following signals:
- HD video,
- camera audio,
- data to control PTZ cameras,
- data for camera OSD menu control.
Technical specifications:
- Name: DS-2CE56D0T-IRM
- Code: M7503
- Standard: HDTVI
- Number of effective pixels: 1920x1080
- Sensitivity (lux) at F1.2, 40 IRE: 0,01
- Electronic shutter: Yes
- AGC: Yes
- OSD menu: No
- Day/night: Yes, ICR
- Digital noise reduction: Yes, 2D
- Illuminator: range up to 20 m
- Lens: 3.6mm
- Viewing angle: 82,2°
- Housing: dome-shaped
- Housing dimensions: 89.6 × 59.1 mm
- Housing material: aluminum alloy
- Operating temperature: -40...+ 60°C
- Degree of protection: IP66
- External connectors: video (BNC)
- Power supply (2.1/5.5 socket)
- Power supply: DC 12 V; 0.4 A
- Power consumption: 4 W
- Weight: 0.34 kg
