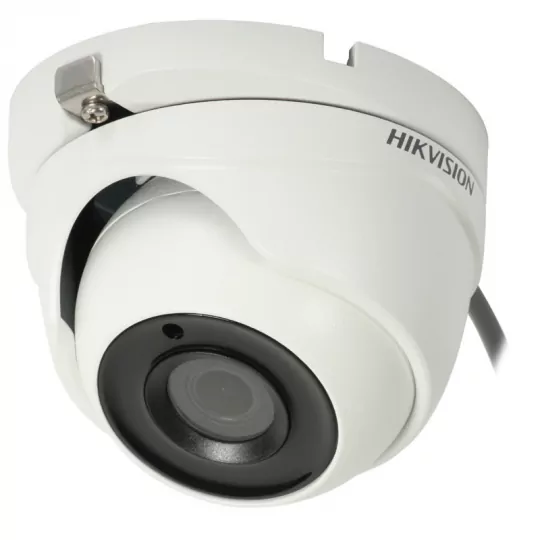

HD-TVI ceiling camera DS-2CE56D7T-ITM Hikvision.
Product index: M7505
Price (with Tax.)
PLN209.00
14 days to return
Free shipping from 499 PLN
Ask a question +48 536 969 696
Product description
The Hikvision DS-2CE56D7T-ITM M7505 camera is designed for use in monitoring systems built on HD-TVI DVRs. The camera generates images of 1080p resolution. With a sensitivity of 0.01 lx and a built-in IR illuminator with a range of up to 20 m, the resulting image is of high quality and good performance even in low light.
In addition, the Hikvision DS-2CE56D7T-ITM camera has a number of features to improve image quality such as WDR, AWB, BLC, HLC, DNR.
HD-TVI ( High Definition Transport Video Interface) is a digitally processed signal transmission technology.
This system allows sending high-definition video (up to 1080p) via coaxial or twisted-pair cable (after using special video transformers). The transmitted image is in the form of an analog signal, with a much wider transmission bandwidth than CVBS. The signal is not compressed, making the image more faithful and clearer during live viewing. Its advantage is the lack of delay and easier system configuration compared to IP cameras.
Key advantages of HD-TVI systems:
- no delays,
- faithful image in live view due to lack of compression,
- transmission using coaxial cable,
- high resolution - available options: 720p, 1080p and 3Mpix,
- Triad DVRs - support for HD-TVI, CVBS and IP cameras,
- high resistance to electromagnetic interference, thanks to the use of synchronous QAM amplitude modulation and separation of chrominance and luminance signals,
- much easier system configuration compared to IP-based systems,
- two-way communication - control of camera OSD and PTZ cameras via signal cable directly from the DVR,
- long transmission range.
HD-TVI system has the ability to transmit data of different types, using a common single cable. It allows to transmit the following signals:
- HD video,
- camera audio,
- data to control PTZ cameras,
- data to control the camera's OSD menu.
Specifications:
- Name: DS-2CE56D7T-ITM
- Code: M7505
- Standard: HDTVI
- Resolution: 2 Mpix
- Lens: 2.8 mm
- IR illuminator: 20 meters
- Resolution/frames: 1080p/25fps
- Power supply: 12V DC
- Day/night: ICR - mechanical filter
- Image features: WDR, Smart IR, AGC, DNR, WB (ATM/MWB), BLC
- Sensor: 2Mpix CMOS
- I/O. Audio: no
- Audio input/output. Alarm: no
- Sensitivity: 0.01 Lux (F1.2, AGC on), 0 Lux with IR
- Housing: dome
