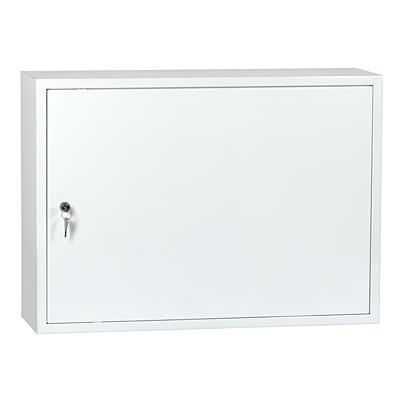

Metal housing TPR-8 500x700x200mm DIPOL

Product description

The switchgear housing consists of elements made of galvanized steel. The housing is hollow, but has a space prepared for mounting electrical apparatus. This type of housing can be installed outdoors.

The enclosures of this company are characterized by modular construction, which means that the switchgear can be configured in any way. They have a good ventilation system and a corrugated surface, which strengthens the entire structure. Products made of thermosetting plastic have high mechanical strength and high resistance to weather conditions.

Technical data:

• Dimensions 700x500x200

• Doors locked with a cylinder lock (2 keys included)

• Ventilation holes in the lower and upper walls

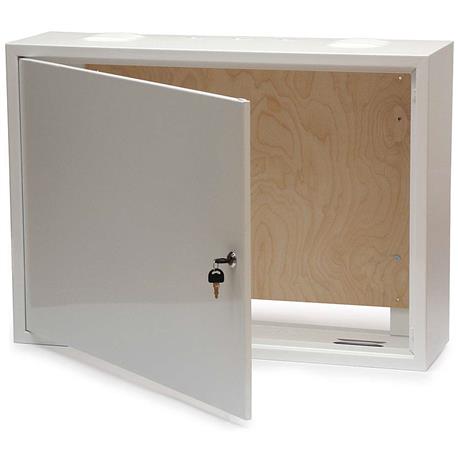

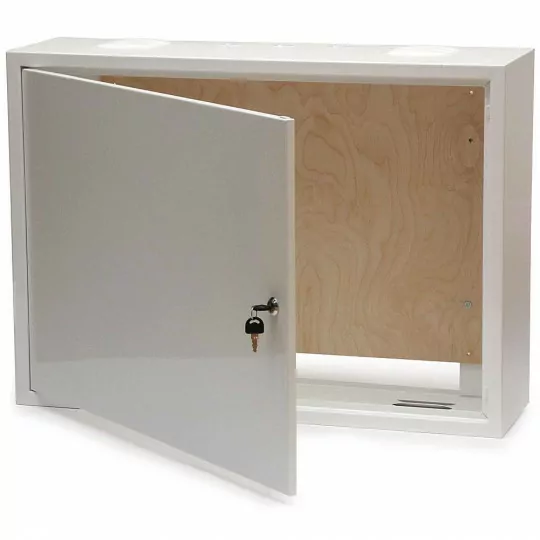

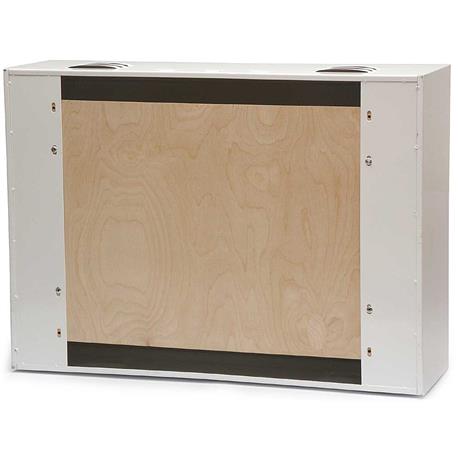

• Back wall made of 6mm thick plywood

• 35mm diameter perforations in the upper and lower wall for wire routing

• Material galvanized steel sheet 0.8-1.2mm powder coated

• Weight: 7.7kg
