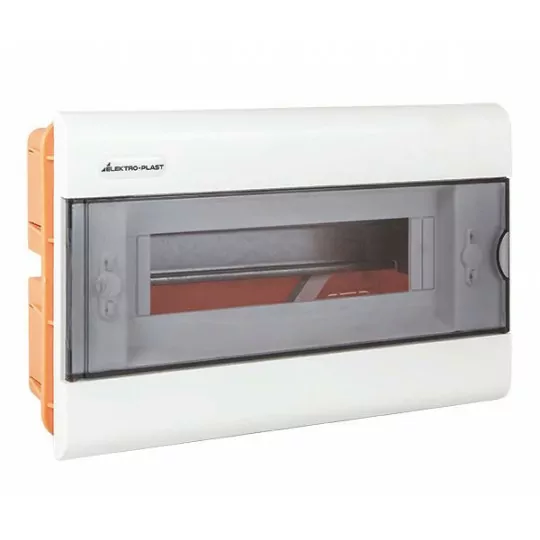

Flush-mounted switchboard 1x12 SRp IP40 SRp-12 2.3 ELEKTRO-PLAST Opatówek

Product description

Theswitchboards are made of high quality plastic . They are adapted for indoor use. The switchgears have a closed box casing and are adapted for sealing. The side parts of the case have ribs for easy insertion of cables or conduits.

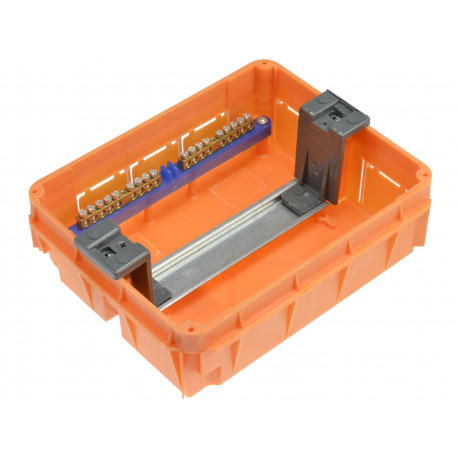

The mounting element in the switchgear is a TH 35/7,5 bracket (Euroszyn), which allows for installation of overcurrent protection, residual current devices and other electrical apparatus.

Technical data:

• color: white
• Transparent cover/door: 1
• Width expressed in number of modules: 12
• DIN rail: 1
• Design in accordance with the EMC Electromagnetic Compatibility Directive: 1
• Number of rows: 1
• With mounting plate: 1
• Cover design: With hole
• Degree of protection (IP): IP40
• Housing material: Plastic
• Internal depth [mm]: 71 mm
• Cover type: Door
• Built-in depth [mm]: 74 mm
• Depth: 94 mm
• Depth [mm]: 94 mm
• Height: 190 mm
• Height [mm]: 190 mm
• Width: 298 mm
• Width [mm]: 298 mm
• Color: White
• Mounting method: Flush mounting
• Manufacturer: ELEKTRO-PLAST OPATÓWEK
