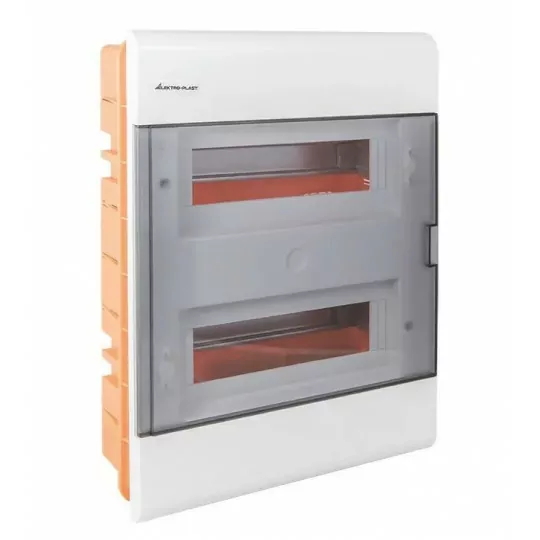

Modular switchboard 2x12 flush-mounted IP40 SRp-24 2.5 ELEKTRO-PLAST Opatówek

Theswitchboards are made of high quality plastic . They are adapted for indoor use. The switchgears have closed box housing and are adapted for sealing. The side parts of the case have ribs for easy insertion of cables or conduits.

The mounting element in the switchgear is a TH 35/7,5 bracket (Euroszyn), which allows for installation of overcurrent protection, residual current devices and other electrical apparatus.

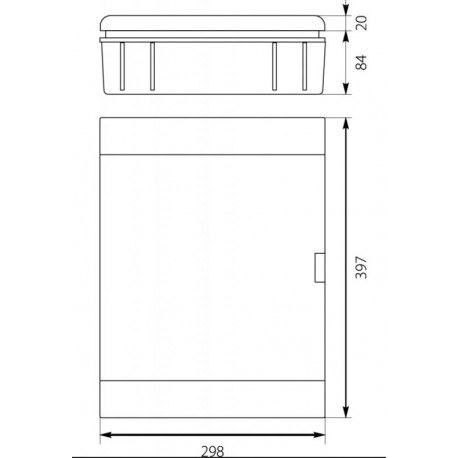

Technical data:

• Depth: 104 mm
• Installation depth: 84 mm
• Color: White
• Number of rows: 2
• Housing material: Plastic
• Expandable: no
• RAL number: 9003
• Cover type: Closed
• Mounting method: Flush mounting
• Degree of protection (IP): IP40
• Width: 298 mm
• Width expressed in number of modules: 12
• DIN rail: yes
• Compliant with the Electromagnetic Compatibility Directive
• Electromagnetic compatibility directive EMC: no
• Height: 397 mm
• With mounting plate: no
• With transparent cover: yes
