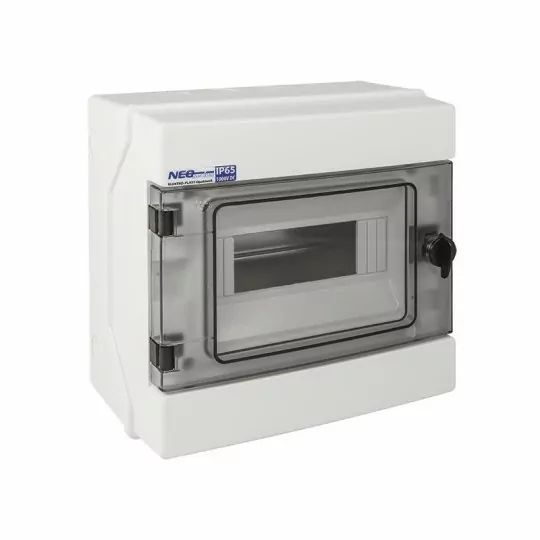

Hermetic modular 1x8 surface mounted switchgear IP65 RH-8 36.8 ELEKTRO-PLAST Opatówek

Product description

Theswitchboards are made of high quality plastic . They are adapted for indoor use. The switchgears have closed box housing and are adapted for sealing. The side parts of the case have ribs for easy insertion of cables or conduits.

The mounting element in the switchgear is a TH 35/7,5 bracket (Euroszyn), which allows for installation of overcurrent protection, residual current devices and other electrical apparatus.

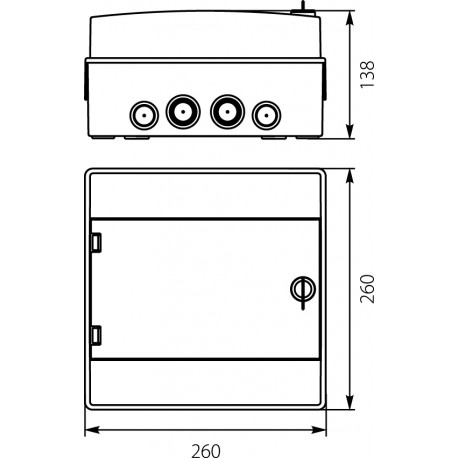

Technical data:

• Width [mm] 260 mm
• Height [mm] 260 mm
• Depth [mm] 138 mm
• Degree of protection (IP) IP65
• Housing material Plastic
• RAL 9003 number
• With mounting plate No
• Built-in depth [mm] 42 mm
• Internal depth [mm] 138 mm
• Color White
• Number of rows 1
• Expandable No
• Cover type Door
• Type of closure Cylinder
• Mounting method Surface mounting
• Width expressed in number of modules 8
• DIN rail Yes
