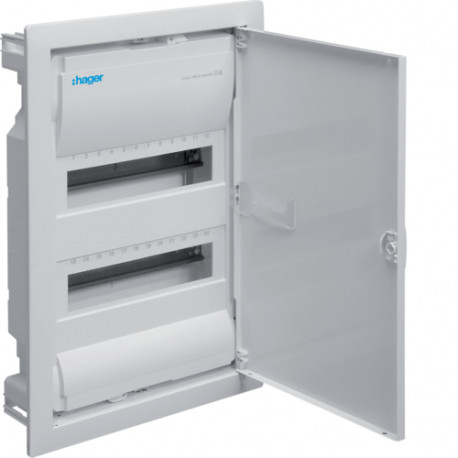

Modular switchboard 2x12 volta VU24NE HAGER

Product description

Hager Volta modular 2x12 flush-mounted cabinet VU24NE. The new Volta switchgear is a modern concept of electricity distribution, combining many practical ideas. Made in the tradition of Hager, guaranteeing the highest quality and innovation in electrical engineering for more than 50 years. The new Volta switchgear incorporates many new ideas that positively translate into everyday work: greater savings in installation time thanks to efficient installation steps, more wiring space with equal width, greater flexibility in the range of terminal equipment and more safety during installation thanks to new patented anchors for plasterboard walls. The main intention of the development work on the new generation of Volta switchboards, was to increase the installation space while maintaining their existing compact dimensions.

The fact is that in addition to the implementation of numerous innovations in the new Volta switchgears, the largest internal area in this class of switchgears has also been achieved, the result of Hager 's efforts is the furthest possible facilitation of the work to be done! The internal usable area in the new Volta switchgears has increased by a full 30%, which not only increases the transparency of the installation, but also reduces the time needed to complete it. Most of the cables are routed in the enlarged side areas and attached with snap-in cable holders. In addition, the terminal supports have been attached directly to the retractable cable grommets, thus achieving additional free space above the apparatuses.

Technical data:

• switchgear: flush-mounted Volta, 2-row
• PE/N screw terminals: 17 holes (1x25mm2+16x10/16mm2)
• dimensions: height 505.5 mm × width 348 mm
• number of modules: 12
• catalog no.: VU24NE
• degree of resistance to penetration of solid objects, dust and humidity: IP30
• insulation class: 2
• installation depth: 90 mm
• apparatus grilles mounted with screws with quick assembly technology
• Sealable as standard
• screwed frame masks up to 15 mm of plaster irregularities
• Built-in spirit level
• for apparatus up to 63 A
• maximum apparatus installation depth: 70 mm
• steel door with flush handle
• impact resistance: IK07
• door hinges operated without tools
• right or left-hand door, mounted without removing the frame
• in a touch guard tray, mounted by latching at the top or bottom of the cabinet
• side ribs for cable entry
• color: white, RAL 9010
• standards: DIN 43871, PN-EN 60439-3
• masking grids suitable for sealing
• suitable for use in residential buildings according to DIN 18015 standard
• Pull-out cable grommets
• easier and faster wiring
• larger connection space above enclosed devices
• special connectors facilitate wall mounting of two cabinets with proper distance between them
• flush mount brackets can be installed vertically and horizontally
