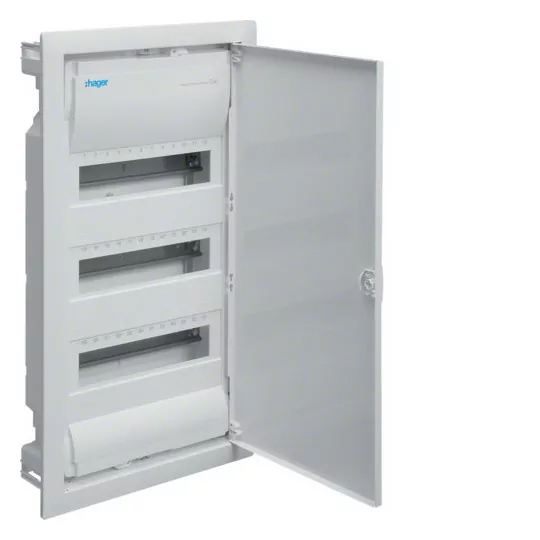

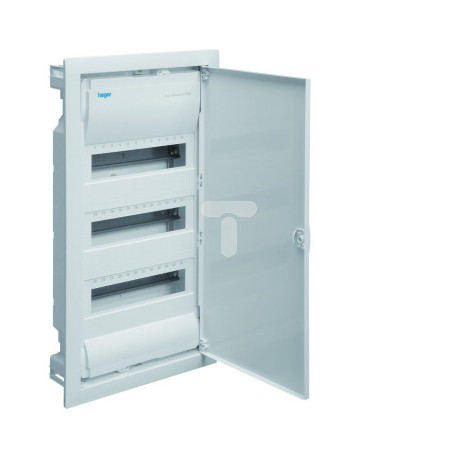

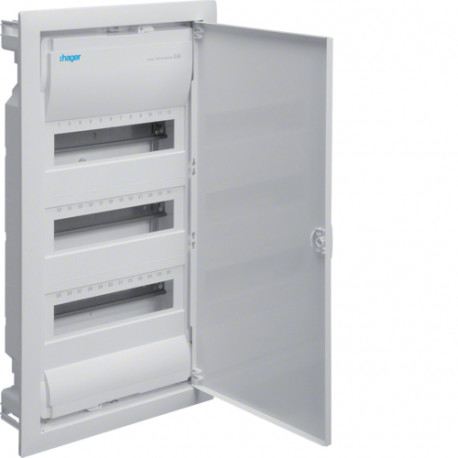

HAGER 3x12 Volta P/T modular switchgear VU36NE
HAGER 3x12 Volta P/T modular switchgear VU36NE

Rozdzielnica modułowa 3x12 Volta P/T VU36NE HAGER

Product index: 1115-133AA-HG010
Price (with Tax.)
PLN269.00
2 qty.
Remaining order amount to obtain free shipping PLN0.00
Order within 10 hours 13 min. and we will ship tomorrow

Ask about product

* Required fields

14 days to return

Free shipping from 499 PLN

Ask a question +48 536 969 696

Technical information

Material
Painted steel
Degree of tightness
IP20 - internal
Mounting method
Flush-mounted

Product description

Mounting: flush mounting
With cable insertion: yes
Compatible with DIN rail mounting: yes
Rated voltage: 400 V
Transparent cover/door: no
Lock type: latch
Number of doors: 1
Degree of protection with door: 30
Lockable: no
Color: white
Material: plastic
Case material: plastic
Surface: natural
Mounting depth: 90 mm
Product depth: 94.5 mm
Internal depth: 91.5 mm
Product height: 630.5 mm
Height: 615 mm
Length: 630.5 mm
Width: 335 mm
Product width: 348 mm
Width in subdivision units: 12
Thickness of side wall material: 2.5 mm
Suitable for outdoor use: no
With mounting plate: no
With lock: no
Number of elements: 12
Number of rows for apparatus: 3
Number of fields / sections: 1
Additional accessories: yes
Number of rows in switchboard: 3
Glow wire test (GWT): 650 °C
IEC-61140 protection class: II
European WEEE directive: not applicable
Protection class: protection class II
Degree of protection: IP30
IK impact resistance marking: IK07
Halogen-free: yes
Shock resistance: IK05
Resistance to ultraviolet rays: yes
Operating temperature: -40 ... 40 °C
