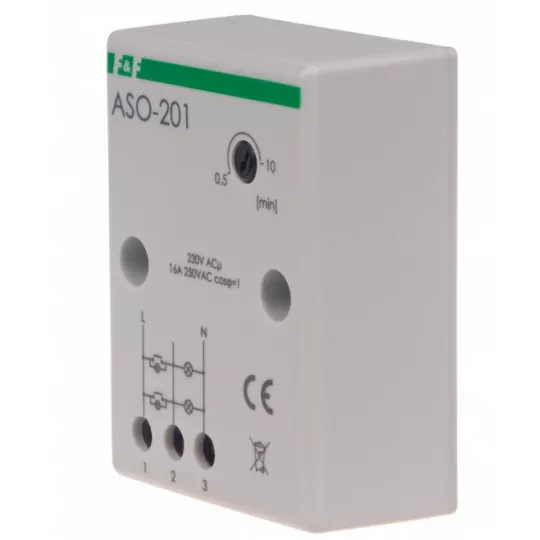

Staircase automatic 1Z/0R 0P 16A ASO-201 F&F

Product description

Staircase automatic is used to keep the lighting on in corridors, staircases, passageways of office buildings and hotels or other facilities for a certain period of time, after which the lighting will be automatically turned off. It is one of the types of motion sensors. The device has two modes of operation, which can be set according to your needs. The first mode of operation is continuous in which each time the sensor detects movement after which the light automatically turns on. The second mode works on the principle of temporary motion detection.

Technical specifications:

• Supply voltage 230 V AC
• Maximum load current AC-1 16 A
• Executing element relay
• Contact configuration 1 × NO
• Contact separation NO
• Tripping delay less than 1 s
• Cut-off delay - adjustable 0.5 ÷ 10 min
• Antilock NO
• Switch-off signalization NO

• Cooperation with illuminated buttons YES
• Connection screw terminals 4.0 mm²
• Tightening torque 0.5 Nm
• Power consumption 0,56 W
• Operating temperature -25 ÷ 50 °C
• Dimensions 51×67×26 mm (± 1 mm)
• Surface mounting
