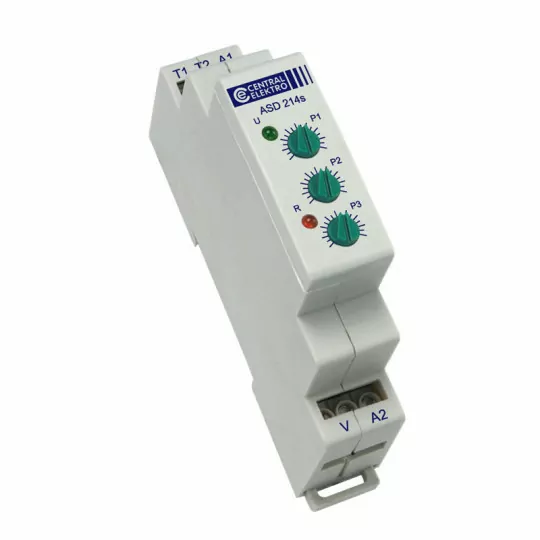

Staircase automatic with dimmer ASD-214s CE.

Product description

Staircase automatic is used to keep the lighting on in corridors, staircases, passageways of office buildings and hotels or other facilities for a certain period of time, after which the lighting will be automatically turned off. It is one of the types of motion sensors. The device has two modes of operation, which can be set according to your needs. The first mode of operation is continuous in which each time the sensor detects movement after which the light automatically turns on. The second mode works on the principle of temporary motion detection.

Technical specifications:

• Rated supply voltage: 230V AC
• Standards and directives: EN 50081, EN 61000, EN 55022
• Operation type:(C) continuous
• Interference level: (N) normal
• Supply voltage tolerance: 15%
• Power consumption: 2VA
• Control voltage:230V AC
• Control current: 5mA
• Control pulse length: min. 100ms
• Protection degree: IP20
• Housing: S1 (88x63x17.5mm)
• Weight: 70g
• Mounting: on TH35 rail
