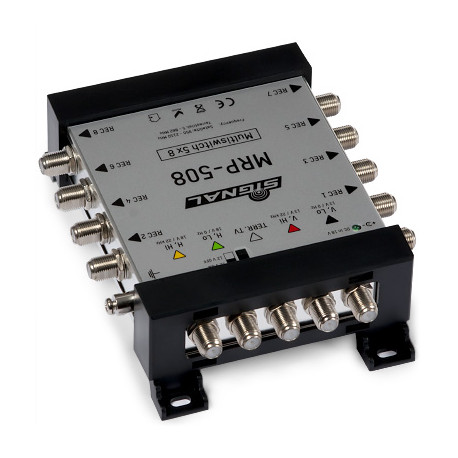

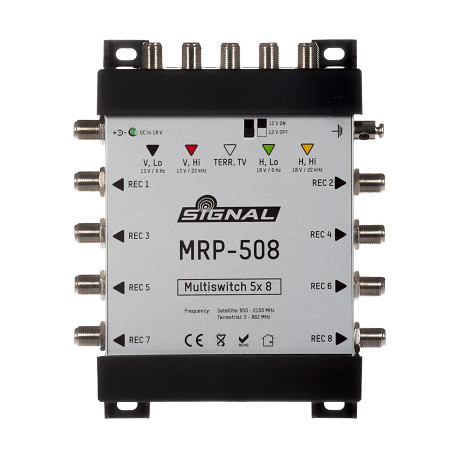

Multiswitch MRP-508 Signal 5/8 with passive TV path DIPOL

Product description

Multiswitch MRP-508 Signal 5/8 allows to implement RTV/SAT installations in single-family houses and small residential and office buildings. Multiswitches are designed for indoor operation. Multiswitches are dedicated for installations based on star topology. In this type of systems, the cables from the end outlets converge at the location of the multiswitch or group of multiswitches. High separation of outputs (no crosstalk between bands and polarizations) and built-in pre-correction of cable characteristics allows to eliminate the influence of cable attenuation increasing with frequency.

Technical specifications:

• radial multiswitch,
• inputs: 4 from quatro converter, 1 terrestrial DVB-T,
• outputs: 8 to SAT tuners,
• passive FM/DVB-T path equipped with On/Off switch 12V DC,
• separation between inputs greater than 25 dB,
• high separation of outputs 30 dB (no crosstalk between bands and polarizations),
• pre-correction of cable characteristics,
• very high input level of 105 dBμV,
• high output level: 100 dBμV,
• power supply and multiswitch voltage indicator lights (simple diagnostics of no power supply or short circuit in ground path),
• ground connection,
• compact dimensions 146×120×42 mm,

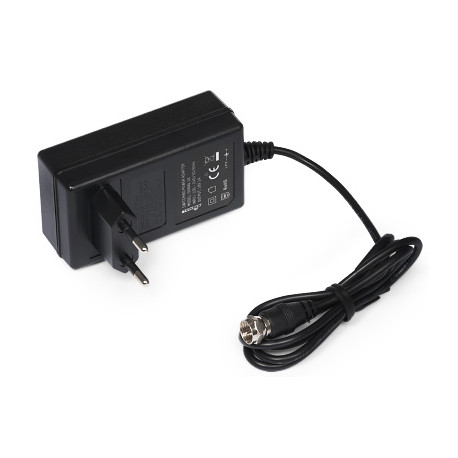

• external DC 18V 1A power supply,
