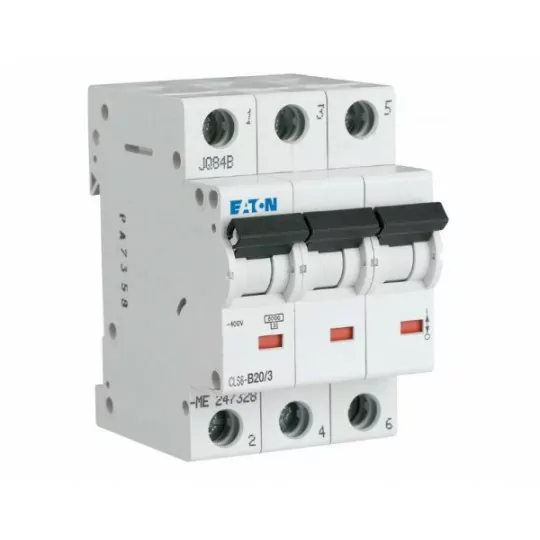

Overcurrent circuit breaker 3P B 20A CLS6 EATON

Product description

Eaton Electric is a company that manufactures modern overcurrent circuit breakers in a wide range of current ratings. They are used in residential and public buildings, as well as in industry.They protect electrical installations from the effects of short circuits and overloads. These products have a convenient elevator terminal system, which provides a firm attachment of switching wires.They are matched for quick installation on a standard rail TS35 mm. Busbars are also available to connect circuit breakers and residual current switches with different pole configurations. All circuit breakers offered by the company have extensive accessories, i.e. auxiliary contacts, triggers, as well as enclosures.

Overcurrent circuit breaker - an element of electrical installation, whose task is to break the continuity of the circuit when the current flowing in the circuit exceeds the safe value for this circuit. They are designed to control and protect against the effects of overloads and short circuits of consumer circuits of installations and electrical appliances in households, etc.

Technical data:

• Tripping characteristic: B
• Number of poles: 3
• Voltage type: AC
• description: 3P B 20A 6kA AC overcurrent circuit breaker CLS6-B20/3-DP 270409 EATON.
• Degree of protection (IP): IP20
• Width expressed in number of modules: 3
• Embedded depth [mm]: 70.5000
• Possibility of additional equipment: Yes
• Simultaneously disconnectable N pole: No
• Rated current [A]: 20
• Rated voltage [V] 2: 400
• Energy limit class: 3
• Frequency [Hz]: 50
• Rated short-circuit breaking capacity according to EN 60898 [kA]: 6
• Overvoltage category: 3
• Pollution degree: 2
• Rated voltage [V]: 400
