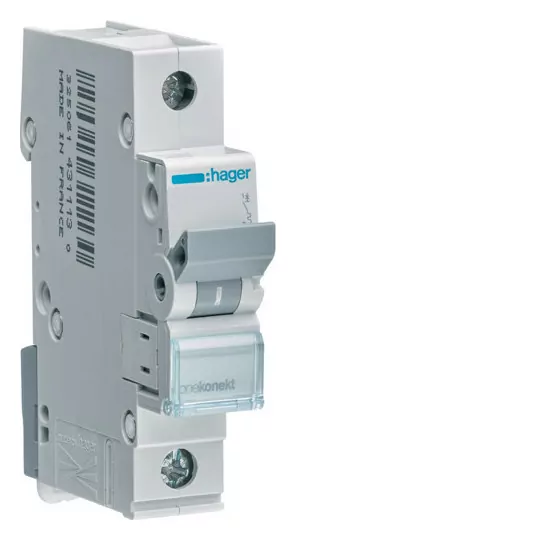

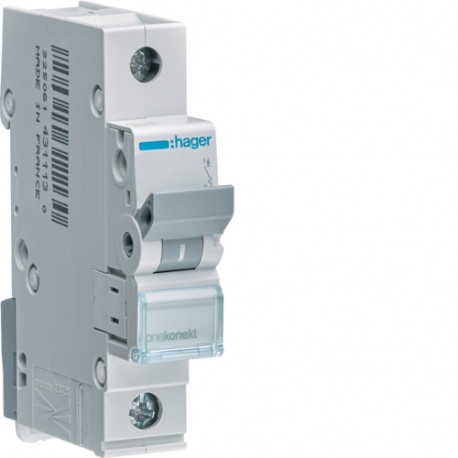

MBN116E 1P B16A overcurrent circuit breaker Hager

Product description

Anovercurrent circuit breaker is a component of an electrical installation whose function is to break the continuity of a circuit when the current exceeds the safe value for that circuit. The circuit breaker is designed to control and protect against the effects of overloads and short circuits of consumer circuits of installations, as well as electrical appliances in households.

The company's main features are innovation and systematic development of products and systems. The brand is associated with excellent quality and the pursuit of perfection. Invariably, new design patterns and improvements have been introduced over the years, surprising customers and fully meeting their expectations. While implementing innovations and new technologies, the company does not forget about interesting design. In its products, Hager guarantees simple installation, ease of use, intuitive interface, modular structure and durability. Components and solutions are manufactured at Hager's 23 production facilities around the world .

Technical data:

• Rated insulation voltage Ui:500 V
• Frequency: 50/60 Hz
• Connection type: with screw
• Tightening torque: 2.8Nm
• Total power loss for rated current: 2,4 W
• Electrical endurance (number of cycles): 4000
• Mechanical endurance (number of cycles): 20000
• Operating temperature: -25 to 60 °C
• Storage temperature: -25 to 80 °C
• Height of installed product: 83 mm
• Width of installed product:17.5 mm
• Depth of installed product: 70 mm
