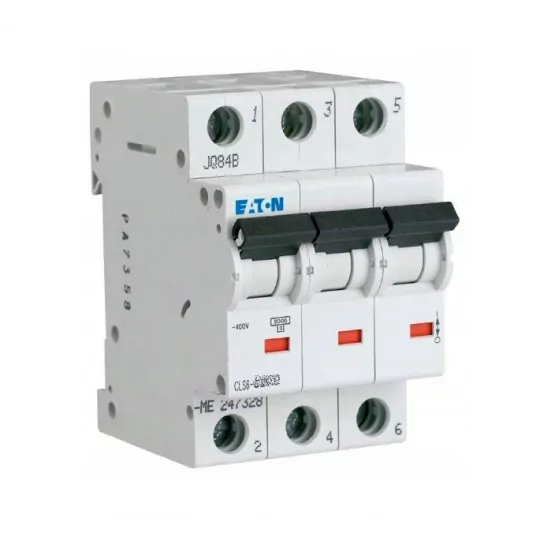

Eaton 3P C 32A CLS6 overcurrent circuit breaker

Product description

Eaton Electric is a company that manufactures modern overcurrent circuit breakers in a wide range of current ratings. They are used in residential and public buildings, as well as in industry.They protect electrical installations from the effects of short circuits and overloads. These products have a convenient elevator terminal system, which provides a firm attachment of switching wires.They are matched for quick installation on a standard rail TS35 mm. Busbars are also available to connect circuit breakers and residual current switches with different pole configurations. All circuit breakers offered by the company have extensive accessories, i.e. auxiliary contacts, triggers, as well as enclosures.

MCN series protections protect electrical installations from the effects of short circuits and overloads, and can also serve as a means of protection against electric shock - automatic shutdown in the event of a short circuit of negligible impedance between the line conductor and an accessible conductive part or protective conductor

Technical data:

• Ean: 4015082704230
• Rated short-circuit breaking capacity according to EN 60898 [kA]: 6
• Rated short-circuit switching capacity according to IEC 60947-2 [kA]: 0
• Energy limitation class: 3
• Number of poles: 3
• Rated current [A]: 32
• Tripping characteristic: C
• Voltage type: AC
• Rated voltage [V]: 400
• Overvoltage category: 3
• Pollution degree: 2
• Width expressed in number of modules: 3
• Embedded depth [mm]: 70.5000
• Degree of protection (IP): IP20
• Frequency [Hz]: 50
