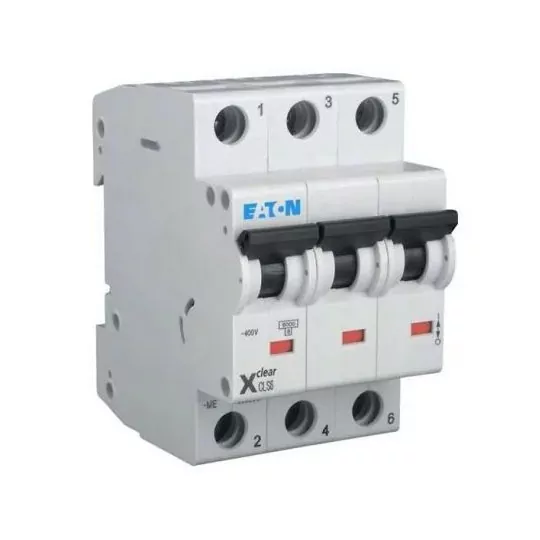

3P D 40A 6kA overcurrent circuit breaker CLS6-D40/3-DP

Product description

Anovercurrent circuit breaker is a component of an electrical installation whose function is to break the continuity of a circuit when the current exceeds the safe value for that circuit. The circuit breaker is designed to control and protect against the effects of overloads and short circuits of consumer circuits of installations, as well as household electrical appliances.

Eaton Electric is a company that manufactures modern overcurrent circuit breakers in a wide range of current ratings. They are used in residential and public buildings, as well as in industry.They protect electrical installations from the effects of short circuits and overloads. These products have a convenient elevator terminal system, which ensures that the switching leads are firmly attached.

Technical data:

• Rated short-circuit switching capacity of 6 kA according to IEC/EN 60898
• Match in contour and external appearance with CFI6, CKN6 series residual current circuit breakers
• High selectivity with respect to the preceding fusible protection due to low transmitted energy
• Elevator connection terminals: top and bottom
• Possibility of top and bottom railings
• Z-AHK and Z-NHK auxiliary contacts can be mounted on the left side
• Meets insulation coordination requirements, contact spacing > 4 mm, for more secure electrical disconnection
• Any power supply connection (from above or below)
• Maximum DC voltage up to 48 V (per gear) for CLS6
• For higher DC voltage, use CLS6-DC
• Rated DC voltage for CLS6-DC 250 V (per pole), = 4 ms.
• Rated short-circuit switching capacity of 6 kA according to IEC/EN60947-2
• Parallel connection of conductors and phase bus possible
