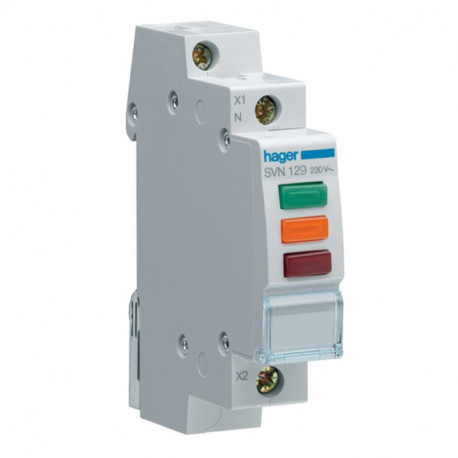

Modular lamp 3-phase 3-color SVN129 230V Hager

Product description

The modular lamp was manufactured by HAGER POLO. The brand is known in the Polish market for the use of modern technologies in its products, which greatly facilitate the user's work with the device. Features such as hassle-free installation, simple operation, as well as high quality strengthen the company's position in the electrotechnical equipment market. The 3-phase modular lamp is designed to signal the operation of a selected function in a given device, in which it is installed. The only source of light in the product is 3 LEDs. The lamp consists of a single module, in which the maximum power of the light source can be 0.8 W, and the rated voltage is 230 V AC with a frequency ranging from 50 to 60 Hz .

The main features of HAGER are innovation and systematic development of products and systems. The brand is associated with excellent quality and the pursuit of perfection. Invariably, new design patterns and improvements have been introduced for years, which surprise customers and fully meet their expectations. In its products, Hager guarantees simple installation, ease of use, intuitive interface, modular structure and durability.

Technical data:

• Number of modules: 1
• Type of light source: LED
• Rated switching voltage Ue (AC): 230 V
• Rated insulation voltage Ui: 250 V
• Rated withstand surge voltage Uimp: 4000 V
• Rated frequency: 50/60 Hz
• Connection type: with screw
• Total power loss for rated current: 0,8 W
• Cross section of flexible cable (wire) in the terminal: 0.75 / 6 mm2
• Cross section of rigid wire (wire) in the terminal: 0.75 / 10 mm2
• Operating temperature: -20 to 50 °C
• Storage temperature: -40 to 80 °C
• Product height: 83 mm
• Width of product: 17.5 mm
• Depth of the product: 62 mm
