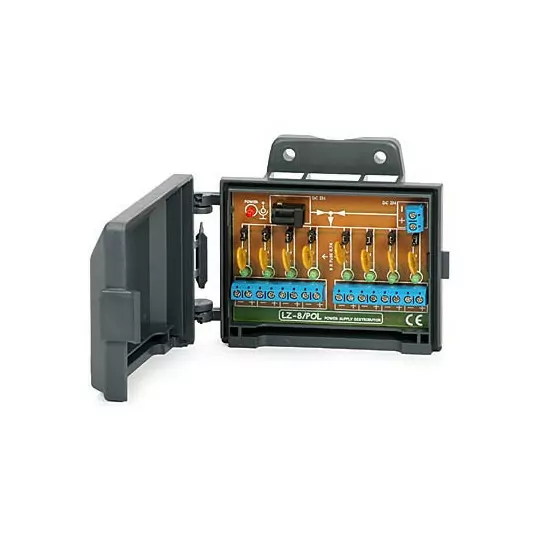

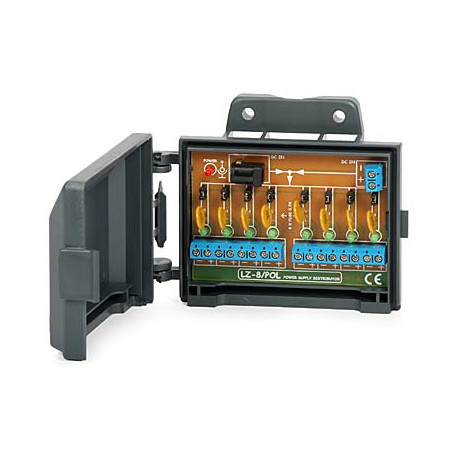

Power splitter LZ-8/POL M1803 DIPOL

The devices can be connected in parallel to obtain 16, 24, outputs. When doing so, remember not to exceed the rated power of the power source. Splitter is a device designed to distribute the signal to eight outputs. The splitter operates in the 5-860 MHz band and is designed to transmit DC voltage through one branch to a preamplifier or possibly a mast amplifier.

It is also very important to have the right power and type of amplifier for the number of TVs. has an LED that indicates when it is tripped (the lack of illumination means the fuse is "blown"). When there is an overload of any of the outputs, the resistance and temperature of the polymer fuse increases (>100°C), and the LED goes out.

Technical data:

• Number of power outputs: 8
• Number of power inputs: 2
• Maximum power supply voltage: DC 0 ... 24 V (typically 12 V)
• Maximum power supply current: 5.6 A
• Maximum current of one output: 0.7 A
• Type of fuses: polymeric
• Power input connector type: 2.1/5.5 mm socket / cable terminals
• Power output connectors type: Cable terminals
• Operating temp. / relative humidity: -40°C ... 45°C / < 95%
• Dimensions (W x H x D): weight 116 x 46 x 25 mm / 90 g
