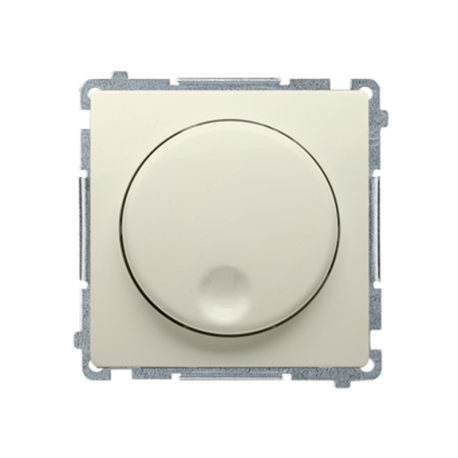

Basic rotary dimmer BMS9T.01/12 beige SIMON

Product description

The SIMON dimmer is a popular choice. It is a modern line of electro-installation fixtures based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon's solutions meet all these requirements while maintaining interior aesthetics. The product is in lilac color and is made of the highest quality materials, so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

CONTACT SIMON enjoys the trust of customers in most countries of the European Union. It primarily manufactures wiring accessories: sockets, switches, floor boxes and practical electronic components. Its long-standing presence on the market, as well as the commitment of its qualified employees, ensures the high quality of the offered accessories.

Basic data:

• Series: Simon Basic
• Product name/type: pressure-turn dimmer
• Color: beige
• Product type: module
• Rated voltage: 230 V
• Connection type/clamp type: screw terminals
• Degree of protection IP:IP20
• Frequency range: 50-50 Hz
• Rated power: 500 VA

Particulars:

• Material type: plastic, PC, halogen-free
• Surface protection: natural
• Surface finish: glossy
• Mounting method [ETIM]: flush mounting
• Mounting method: claws / screws
• Product height: 75 mm
• Width of product: 75 mm
• Product depth:46 mm
• Installation depth: 25 mm
• Operation method/style: knob/button
• Number of keys/levers: 1
• For light sources: LED - NO,
• Compact fluorescent lamp (energy-saving) - NO,
• linear fluorescent lamp - NO,
• 230V incandescent bulbs - YES,
• 230V halogen bulbs -YES,
• halogen bulbs 12V- electronic transformer - YES,
• halogen bulbs 12V- toroidal core transformer - YES,
• devices with electric motor (fans) - NO
• Brightness level memory: yes
• For use with a push button: yes
• For use with presence sensor: no
• For use with timer: no
• For use with radio button: no
• For use with infrared button: no
• Load type: Universal
• Series dimmer: yes
• For use with motion sensor: no
