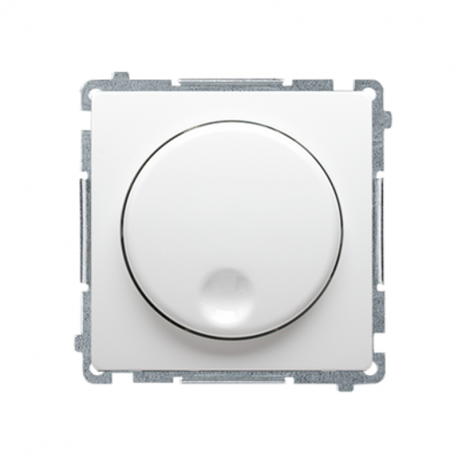

Basic rotary dimmer BMS9T.01/11 white SIMON

Product description

The SIMON dimmer is a popular choice. It is a modern line of electro-installation accessories based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon's solutions meet all these requirements while maintaining interior aesthetics. The product is white in color and was made of the highest quality materials so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

CONTACT SIMON enjoys the trust of customers in most countries of the European Union. It primarily manufactures wiring accessories: sockets, switches, floor boxes and practical electronic components. Its long-standing presence on the market, as well as the commitment of its qualified employees, ensures the high quality of the offered accessories.

Basic data:

• Series: Simon Basic
• Product name/type: pressure-turn dimmer
• Color: white
• RAL (similar): RAL 9003
• Product type: module
• Rated voltage: 230 V
• Connection type / terminal type: screw terminals
• IP degree of protection: IP20
• Frequency range: 50-50 Hz
• Rated power: 500 VA

Particulars:

• Material type: plastic, PC, halogen-free
• Surface protection: natural
• Surface finish: glossy
• Mounting method [ETIM]: flush mounting
• Mounting method: claws / screws
• Product height: 75 mm
• Product width: 75 mm
• Product depth: 46 mm
• Embedded depth: 25 mm
• Operation method/style: knob/button
• Number of keys/levers: 1
• For light sources: LED - NO, compact fluorescent (energy-saving) - NO, linear fluorescent - NO, 230V incandescent bulbs - YES, 230V halogen bulbs - YES, 12V halogen bulbs - electronic transformer - YES, 12V halogen bulbs - toroidal core transformer - YES,
• devices with electric motor (fans) - NO
• Brightness level memory: yes
• For use with a push button: yes
• For use with presence sensor: no
• For use with timer: no
• For use with radio button: no
• For use with infrared button: no
• Load type: Universal
• Series dimmer: yes
• For use with motion sensor: no
