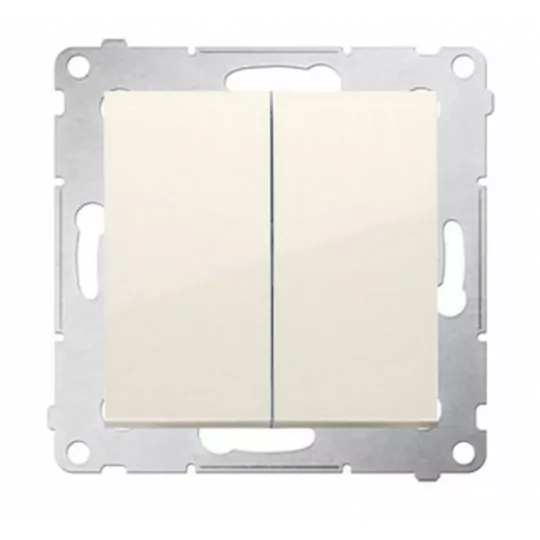

Simon54 double NO pushbutton DP2.01/41 beige

Product description

SIMON 54 contact is a popular choice. It is a modern line of electro-installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon solutions meet all these requirements while maintaining the aesthetics of the interiors.The product is beige in color and is made of the highest quality materials so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

CONTACT SIMON enjoys the trust of customers in most countries of the European Union.It primarily manufactures wiring accessories: sockets, switches, floor boxes and practical electronic components. Long-standing presence in the market, as well as the commitment of qualified employees, gives confidence in the high quality of the offered accessories.

Technical data:

• Simon 54 series
• Product name/type of double-circuit pushbutton. Dual circuit: 2 inputs, 2 outputs.
• Cream color
• Rated current fluorescent 10AX
• Rated voltage 250V
• Type of connection / type of quick-connector terminal
• Degree of protection IP20/IP44
• Notes To achieve IP44 splash-proof rating, use a frame gasket
• Illumination optional, not included
• ETIM class EC000029 Button
• Imprint/Pictogram none
• Material type plastic, PC, halogen-free
• Surface protection natural
• Surface finish glossy
• Mounting method [ETIM] flush mounting
• Mounting method claws / screws
• Height of the product 75mm
• Width of product 75mm
• Depth of product 41mm
• Built-in depth 26mm
• Operating method / mode of operation rocker key
• Number of keys/levers 2
• Circuitry Pushbutton 2x1-pole (monostable)
